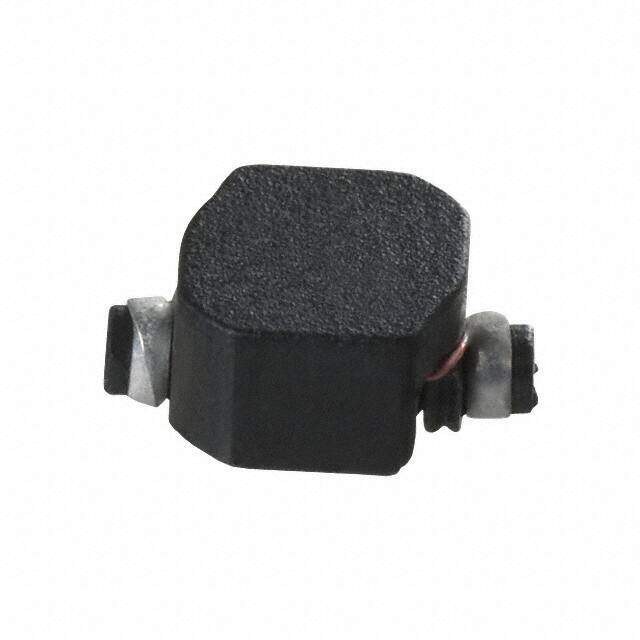

UP0.4C-270-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
UNI-PAC? 0.4C Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 27muH
PDF
/
Inventory: 3232
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.445mm
Length 6.6mm
Height Seated (Max) 0.115 2.92mm
Height 2.92mm
Technical
Current - Saturation 680mA
Inductance Frequency - Test 100kHz
Max DC Current 680mA
DC Resistance (DCR) 480mOhm Max
Test Frequency 100kHz
Inductance 27μH
Current Rating 690mA
Depth 4.45mm
Shielding Unshielded
Current Rating (Amps) 690mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 480mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Series UNI-PAC? 0.4C
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Material - Core Ferrite
Weight 907.18474mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
