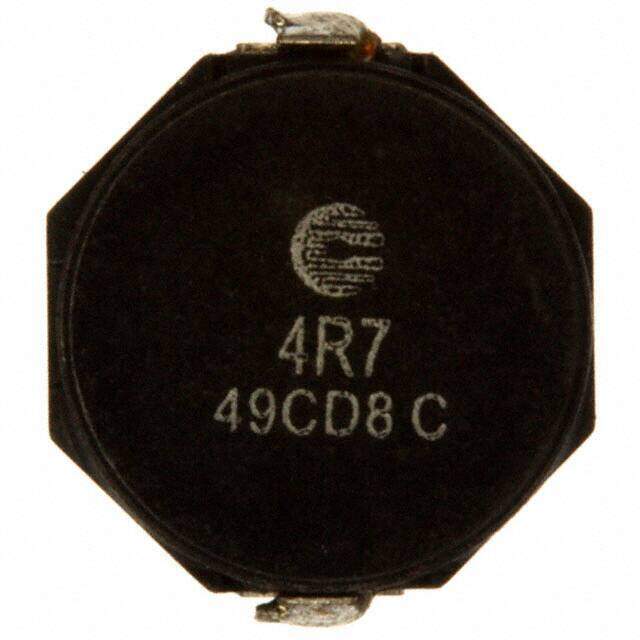

SD8328-4R7-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SD8328 Nonstandard 0.374Lx0.327W 9.50mmx8.30mm 4.7muH
PDF
/
Buying Options
Total Price: USD $2.57
Unit Price: USD $2.5696
≥1 USD $2.5696
≥10 USD $2.18592
≥100 USD $2.014848
≥500 USD $1.80048
≥1000 USD $1.500312
≥3000 USD $1.457456
Inventory: 403
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 1.360777g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series SD8328
Size / Dimension 0.374Lx0.327W 9.50mmx8.30mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 4.5A
Shielding Shielded
Depth 8.3mm
Current Rating 4.5A
Military Standard Not
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 24.7mOhm Max
Max DC Current 4.5A
Inductance Frequency - Test 100kHz
Current - Saturation 3.6A
DC Current 4.5A
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Length 9.4996mm
Width 8.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
