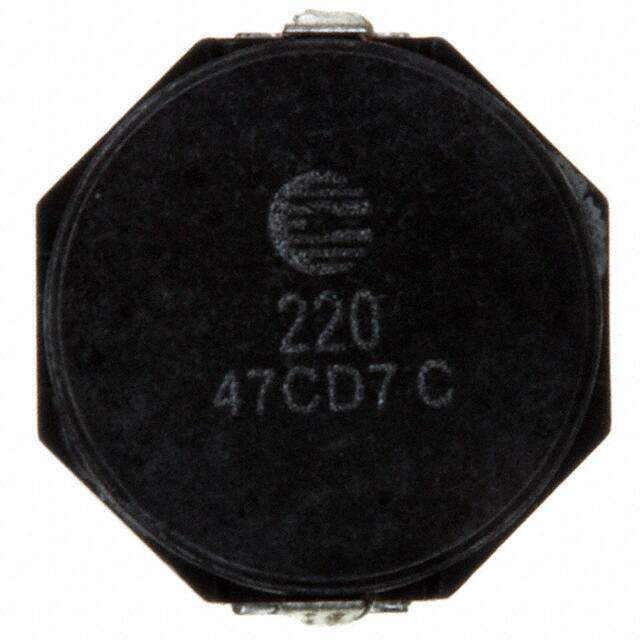

SD8328-220-R image
Favorite
SD8328-220-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SD8328 Nonstandard 0.374Lx0.327W 9.50mmx8.30mm 22muH
PDF
/
Buying Options
Total Price: USD $2.51
Unit Price: USD $2.506848
≥1 USD $2.506848
≥10 USD $2.364948
≥100 USD $2.231089
≥500 USD $2.104793
≥1000 USD $1.985651
Inventory: 1184
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 8.2804mm
Length 9.4996mm
Height Seated (Max) 0.118 3.00mm
Height 3mm

Technical

DC Current 1.85A
Current - Saturation 1.7A
Inductance Frequency - Test 100kHz
Max DC Current 1.7A
DC Resistance (DCR) 99mOhm Max
Test Frequency 100kHz
Inductance 22μH
Military Standard Not
Current Rating 1.85A
Depth 8.3mm
Shielding Shielded
Current Rating (Amps) 1.85A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.374Lx0.327W 9.50mmx8.30mm
Series SD8328
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 1.360777g
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
