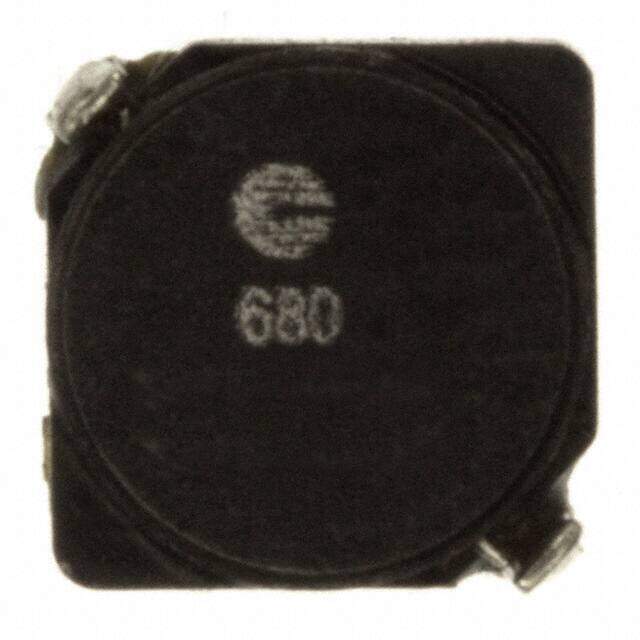

SD6020-680-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SD6020 Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 68muH
PDF
/
Inventory: 5139
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 5.9944mm
Length 5.9944mm
Height Seated (Max) 0.079 2.00mm
Height 2mm
Technical
Current - Saturation 430mA
Inductance Frequency - Test 100kHz
Max DC Current 430mA
DC Resistance (DCR) 840mOhm Max
Test Frequency 100kHz
Inductance 68μH
Current Rating 500mA
Shielding Shielded
Current Rating (Amps) 500mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Series SD6020
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 907.18474mg
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
