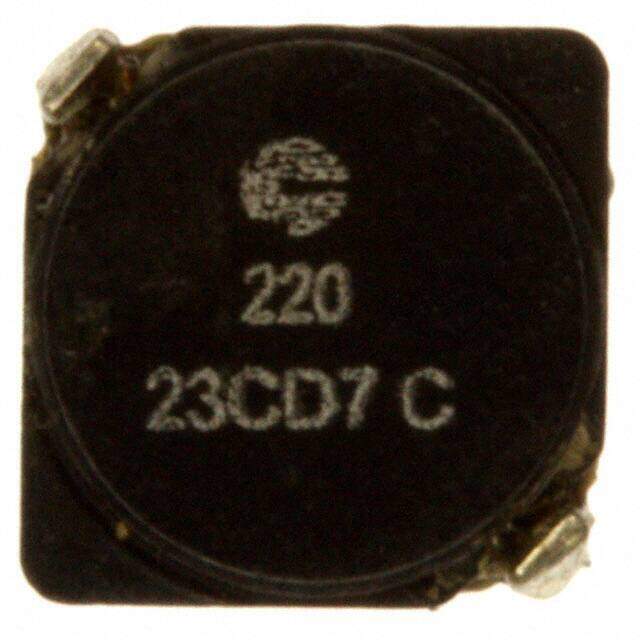

SD6020-220-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SD6020 Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 22muH
PDF
/
Inventory: 4007
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Weight 907.18474mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 1998
Series SD6020
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 940mA
Shielding Shielded
Current Rating 940mA
Inductance 22μH
Test Frequency 100kHz
DC Resistance (DCR) 290mOhm Max
Max DC Current 800mA
Inductance Frequency - Test 100kHz
Current - Saturation 800mA
Dimensions
Height 2mm
Height Seated (Max) 0.079 2.00mm
Length 5.9944mm
Width 5.9944mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
