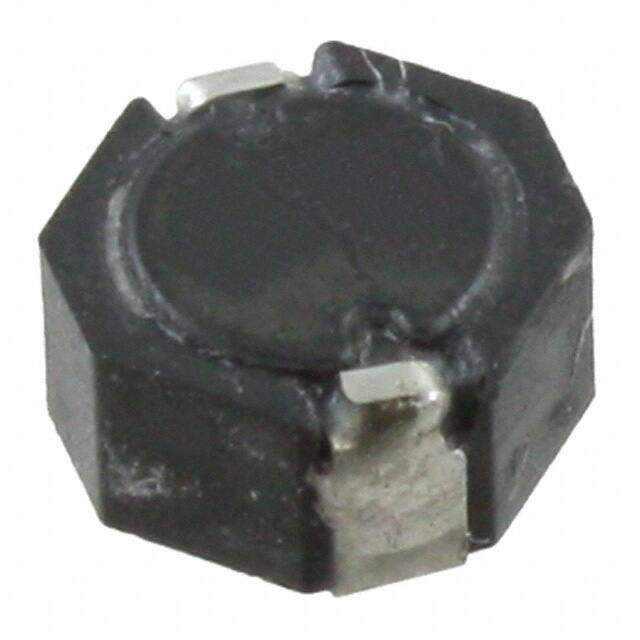

SD53-150-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SD53 Nonstandard 0.205Lx0.205W 5.20mmx5.20mm 15muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8056
≥1 USD $0.8056
≥10 USD $0.6612
≥100 USD $0.6403
≥500 USD $0.62035
≥1000 USD $0.59945
Inventory: 1181
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 453.59237mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series SD53
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.1A
Shielding Shielded
Depth 5.2mm
Current Rating 1.1A
Military Standard Not
Inductance 15μH
Test Frequency 100kHz
DC Resistance (DCR) 142mOhm Max
Max DC Current 1.1A
Inductance Frequency - Test 100kHz
Current - Saturation 1.1A
Inductance Tolerance 20%
DC Current 1.1A
RMS Current (Irms) 1.1A
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Length 5.2mm
Width 5.1816mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
