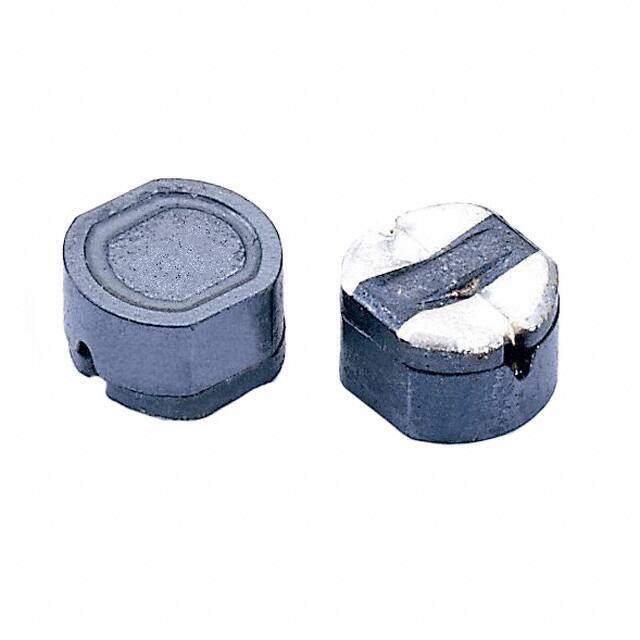

SD3110-820-R image
Favorite
SD3110-820-R image
Favorite
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description Inductor Power Shielded Drum Core 82uH 20% 100KHz Ferrite 167mA 3.57Ohm DCR 1212 T/R
PDF
/
Inventory: 7103
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series SD3110
Size / Dimension 0.122Lx0.122W 3.10mmx3.10mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 167mA
Shielding Shielded
Inductance 82μH
DC Resistance (DCR) 3.57Ohm
Inductance Frequency - Test 100kHz
Current - Saturation 166mA

Dimensions

Height Seated (Max) 0.039 1.00mm
