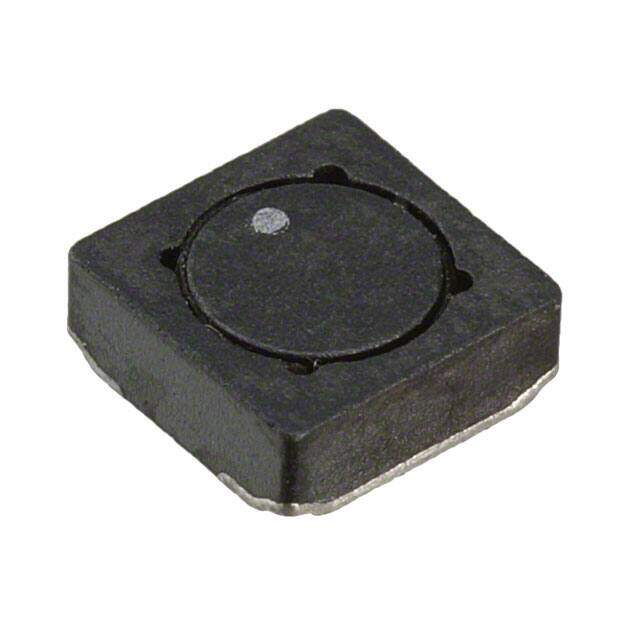

SD20-680-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SD Nonstandard 0.205Lx0.205W 5.20mmx5.20mm 68muH
PDF
/
Inventory: 7321
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 907.18474mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2007
Series SD
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 610mA
Shielding Shielded
Depth 5.2mm
Current Rating 610mA
Military Standard Not
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 694.7mOhm
Max DC Current 337mA
Inductance Frequency - Test 100kHz
Current - Saturation 337mA
DC Current 610mA
Dimensions
Height 2mm
Height Seated (Max) 0.079 2.00mm
Length 5.1816mm
Width 5.1816mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
