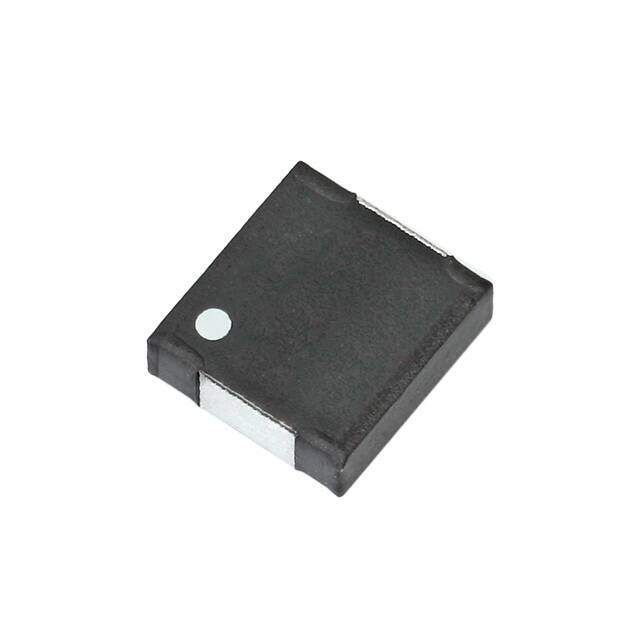

MPIA4040R4-2R2-R
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MPIA4040 Nonstandard 0.175Lx0.160W 4.45mmx4.06mm 2.2muH
PDF
/
Inventory: 6515
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal Composite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series MPIA4040
Size / Dimension 0.175Lx0.160W 4.45mmx4.06mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Molded
Composition Wirewound
HTS Code 8504.50.80.00
Shielding Shielded
Depth 4.06mm
Current Rating 3.9A
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 35mOhm
Max DC Current 3.9A
Current - Saturation 5.7A
Dimensions
Height 2mm
Height Seated (Max) 0.079 2.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Ratings AEC-Q200
