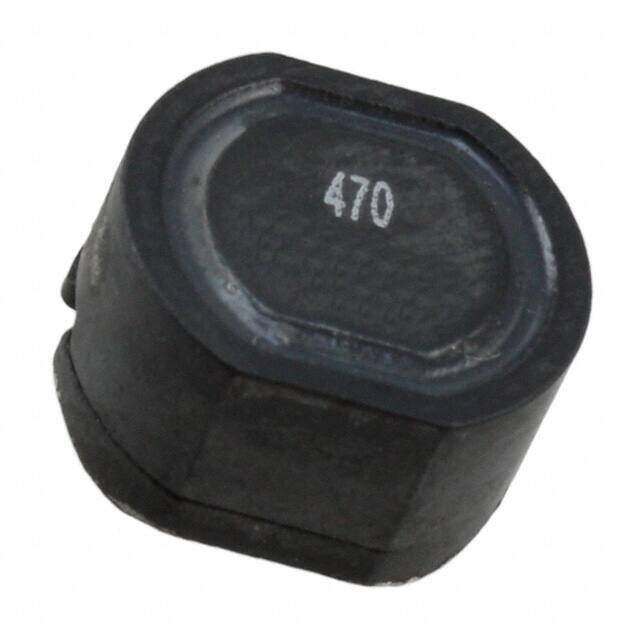

LDS0705-470M-R
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 47UH 1.21A 158 MOHM
PDF
/
Inventory: 4088
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series LDS0705
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.21A
Shielding Shielded
Inductance 47μH
DC Resistance (DCR) 158mOhm
Inductance Frequency - Test 100kHz
Current - Saturation 1.18A
Dimensions
Height Seated (Max) 0.197 5.00mm
