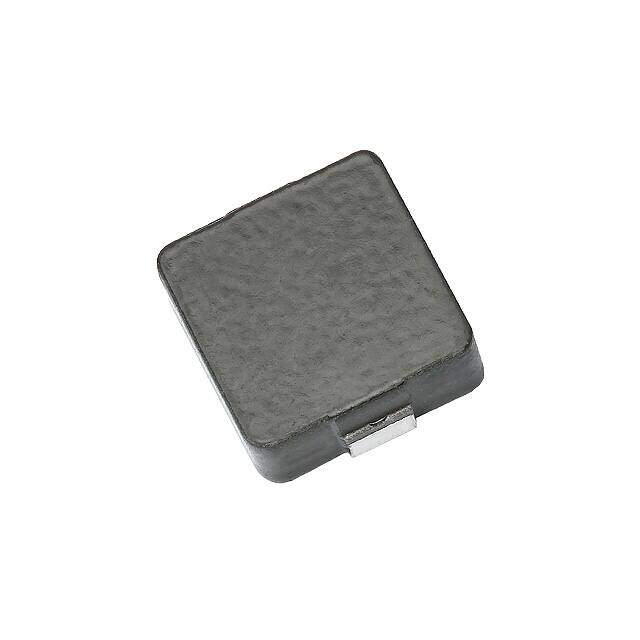

HCMA1707-4R7-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
HCMA1707 Nonstandard 0.677Lx0.663W 17.20mmx16.85mm 4.7muH
PDF
/
Buying Options
Total Price: USD $3.18
Unit Price: USD $3.1768
≥1 USD $3.1768
≥10 USD $2.65848
≥100 USD $2.42704
≥500 USD $2.08032
≥1000 USD $1.90696
Inventory: 757
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series HCMA1707
Size / Dimension 0.677Lx0.663W 17.20mmx16.85mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Shielded
Depth 16.85mm
Current Rating 27A
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 4.72mOhm Max
Max DC Current 27A
Current - Saturation 24A
Dimensions
Height 7mm
Height Seated (Max) 0.276 7.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Ratings AEC-Q200
