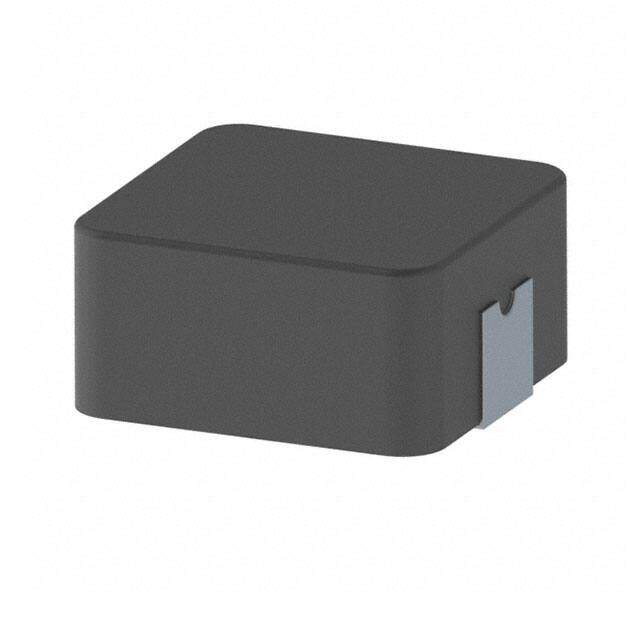

HCM1A1307-330-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 33UH 4.7A 45MOHM SMD
PDF
/
Buying Options
Total Price: USD $3.94
Unit Price: USD $3.942959
≥1 USD $3.942959
≥10 USD $3.719775
≥100 USD $3.509219
≥500 USD $3.31058
≥1000 USD $3.123193
Inventory: 1225
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2016
Series HCM1A
Size / Dimension 0.520Lx0.492W 13.20mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 4.7A
Shielding Shielded
Inductance 33μH
DC Resistance (DCR) 45mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 6A
Dimensions
Height Seated (Max) 0.256 6.50mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
