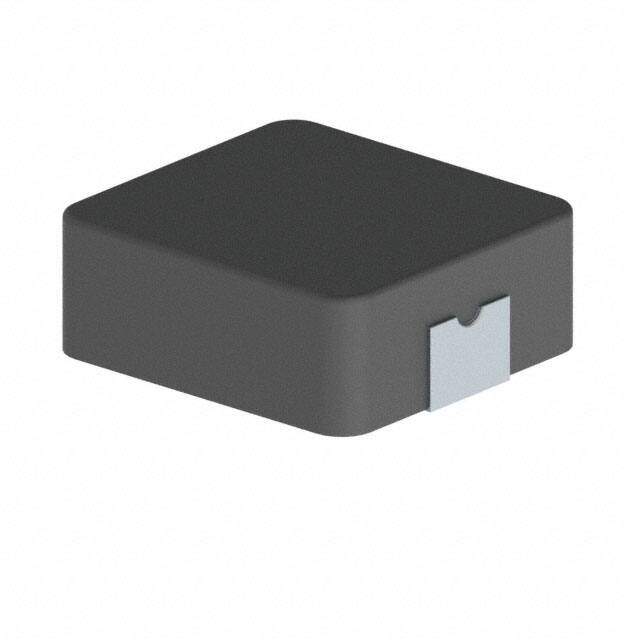

HCM1A1305-R68-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 680NH 27A 1.33MOHM SMD
PDF
/
Inventory: 5705
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2016
Series HCM1A
Size / Dimension 0.524Lx0.480W 13.30mmx12.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 27A
Shielding Shielded
Inductance 680nH
DC Resistance (DCR) 1.33mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 32A
Dimensions
Height Seated (Max) 0.197 5.00mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
