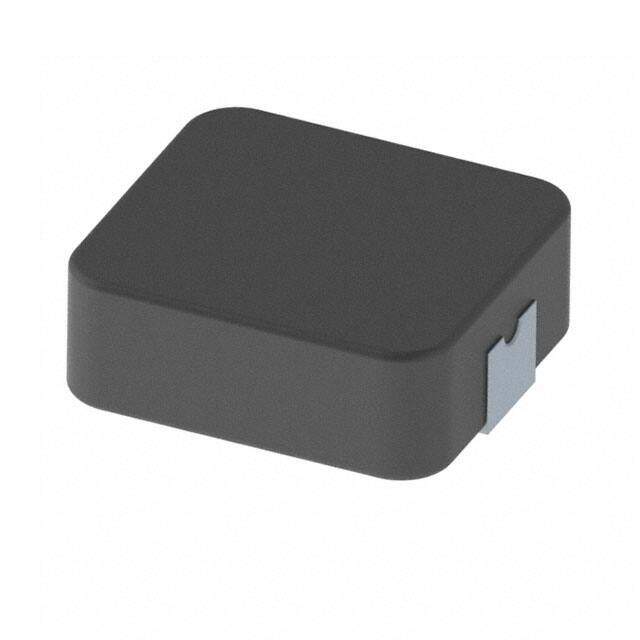

HCM1A1104-470-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 47UH 1.9A 181MOHM SMD
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.604777
≥1 USD $0.604777
≥10 USD $0.57054
≥100 USD $0.538248
≥500 USD $0.507781
≥1000 USD $0.479034
Inventory: 4929
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.157 4.00mm
Technical
Inductance Tolerance 20%
Current - Saturation 3.6A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 181mOhm Max
Inductance 47μH
Shielding Shielded
Current Rating (Amps) 1.9A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.453Lx0.406W 11.50mmx10.30mm
Series HCM1A
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Material - Core Iron Powder
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
