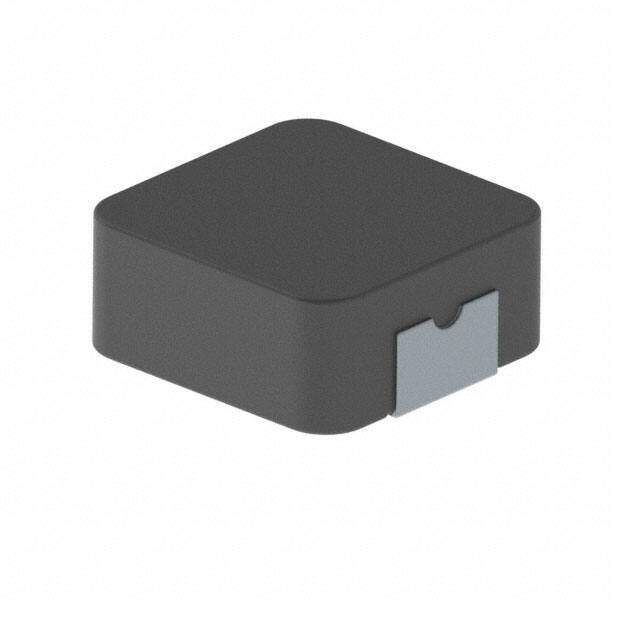

HCM1A0703-R10-R image
Favorite
HCM1A0703-R10-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description HCM1A Nonstandard 0.280Lx0.268W 7.10mmx6.80mm 100nH
PDF
/
Buying Options
Total Price: USD $1.2
Unit Price: USD $1.197602
≥1 USD $1.197602
≥10 USD $1.129817
≥100 USD $1.065861
≥500 USD $1.005525
≥1000 USD $0.948611
Inventory: 1098
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder

Technical

Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2016
Series HCM1A
Size / Dimension 0.280Lx0.268W 7.10mmx6.80mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8504.50.80.00
Current Rating (Amps) 22A
Shielding Shielded
Inductance 100nH
DC Resistance (DCR) 1.4mOhm Max
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 28A

Dimensions

Height Seated (Max) 0.118 3.00mm

Compliance

RoHS Status RoHS Compliant
Ratings AEC-Q200
