HCM1305-2R2-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

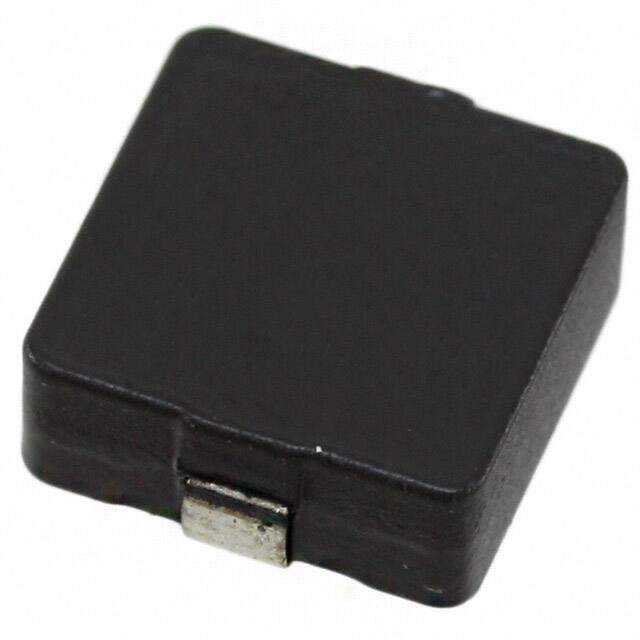

HCM1305 Nonstandard 0.524Lx0.480W 13.30mmx12.20mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $0.97152
≥100 USD $0.895488
≥500 USD $0.800448
≥1000 USD $0.671
Inventory: 387
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 453.59237mg
Material - Core Iron Powder
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series HCM1305
Size / Dimension 0.524Lx0.480W 13.30mmx12.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Wirewound
Current Rating (Amps) 20A
Shielding Shielded
Depth 12.5mm
Current Rating 20A
Military Standard Not
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 5.29mOhm Max
Max DC Current 32A
Inductance Frequency - Test 100kHz
Current - Saturation 32A
DC Current 20A
Self Resonant Frequency 5MHz
Dimensions
Height 5mm
Height Seated (Max) 0.197 5.00mm
Length 13.3096mm
Width 12.192mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
