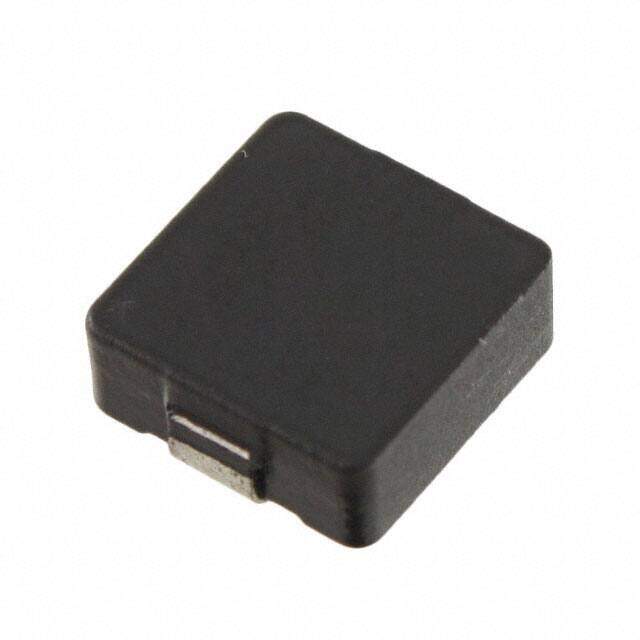

HCM1104-100-R image
Favorite
HCM1104-100-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description HCM1104 Nonstandard 0.437Lx0.394W 11.10mmx10.00mm 10muH
PDF
/
Inventory: 7202
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series HCM1104
Size / Dimension 0.437Lx0.394W 11.10mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Wirewound
Current Rating (Amps) 7.5A
Shielding Shielded
Depth 10.3mm
Current Rating 7.5A
Military Standard Not
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 30mOhm Max
Max DC Current 7.5A
Inductance Frequency - Test 100kHz
Current - Saturation 8.5A
DC Current 7.5A

Dimensions

Height 3.9878mm
Height Seated (Max) 0.157 4.00mm
Length 11.0998mm
Width 10.0076mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
