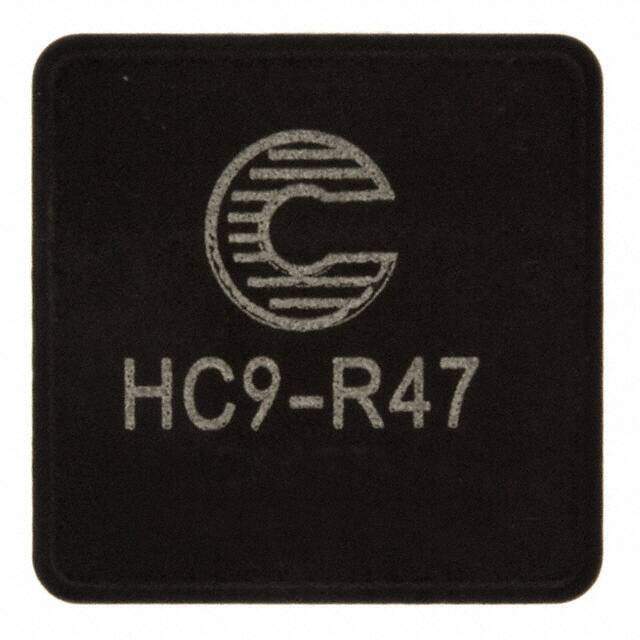

HC9-R47-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
HC9 Nonstandard 0.528Lx0.516W 13.40mmx13.10mm 470nH
PDF
/
Buying Options
Total Price: USD $5.01
Unit Price: USD $5.0072
≥1 USD $5.0072
≥10 USD $4.05856
≥100 USD $3.607648
≥500 USD $3.40736
≥1000 USD $3.156736
Inventory: 1144
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 6.803886g
Material - Core Iron Powder
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Published 2011
Series HC9
Size / Dimension 0.528Lx0.516W 13.40mmx13.10mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 33.7A
Shielding Unshielded
Depth 13.1mm
Current Rating 33.7A
Military Standard Not
Inductance 470nH
Test Frequency 100kHz
DC Resistance (DCR) 0.88mOhm Max
Max DC Current 57A
Inductance Frequency - Test 100kHz
Current - Saturation 57A
Dimensions
Height 7.5mm
Height Seated (Max) 0.295 7.50mm
Length 13.4mm
Width 13.1mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
