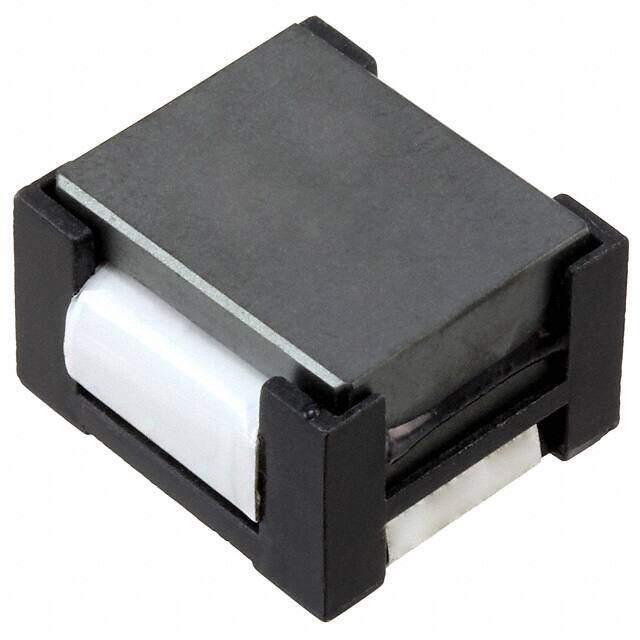

HC2-1R0-R image
Favorite
HC2-1R0-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description HC2 Nonstandard 0.756Lx0.748W 19.20mmx19.00mm 1muH
PDF
/
Inventory: 9320
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Weight 13.607771g

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series HC2
Size / Dimension 0.756Lx0.748W 19.20mmx19.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 33A
Shielding Unshielded
Depth 19mm
Current Rating 33A
Military Standard Not
Inductance 1μH
Test Frequency 300kHz
DC Resistance (DCR) 1.3mOhm Max
Inductance Frequency - Test 300kHz
Current - Saturation 42.5A

Dimensions

Height 12.7mm
Height Seated (Max) 0.500 12.70mm
Length 19.177mm
Width 18.9992mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
