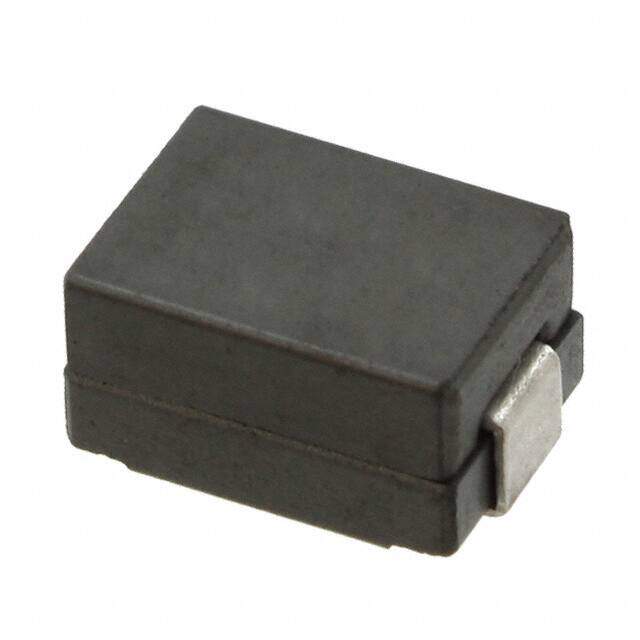

FP4-150-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FLAT-PAC 4 Nonstandard 0.402Lx0.268W 10.20mmx6.80mm 150nH
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.4193
≥1 USD $1.4193
≥10 USD $1.1647
≥100 USD $1.1286
≥500 USD $1.09155
≥1000 USD $1.05545
Inventory: 1115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 1.814369g
Material - Core Ferrite
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Published 2007
Series FLAT-PAC 4
Size / Dimension 0.402Lx0.268W 10.20mmx6.80mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 40A
Shielding Unshielded
Depth 6.8mm
Current Rating 40A
Military Standard Not
Inductance 150nH
Test Frequency 1MHz
DC Resistance (DCR) 0.65mOhm Max
Current 9.2A
Max DC Current 42A
Inductance Frequency - Test 1MHz
Current - Saturation 42A
DC Current 40A
Self Resonant Frequency 37MHz
Dimensions
Height 5mm
Height Seated (Max) 0.197 5.00mm
Length 10.1854mm
Width 6.7818mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free

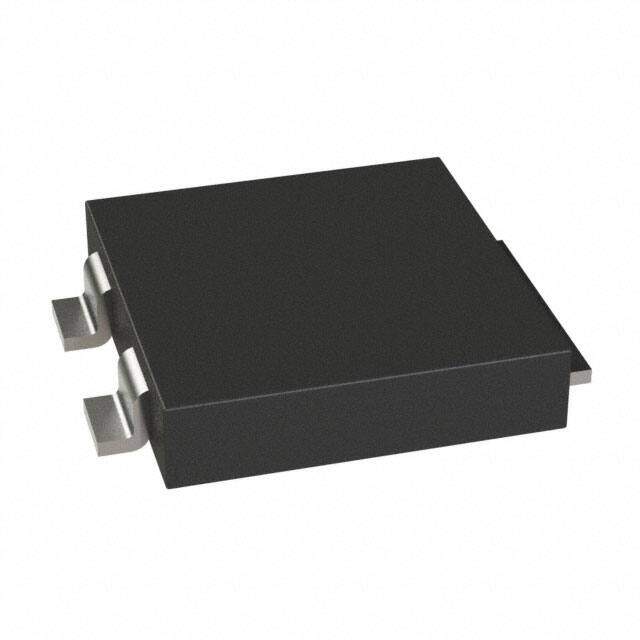

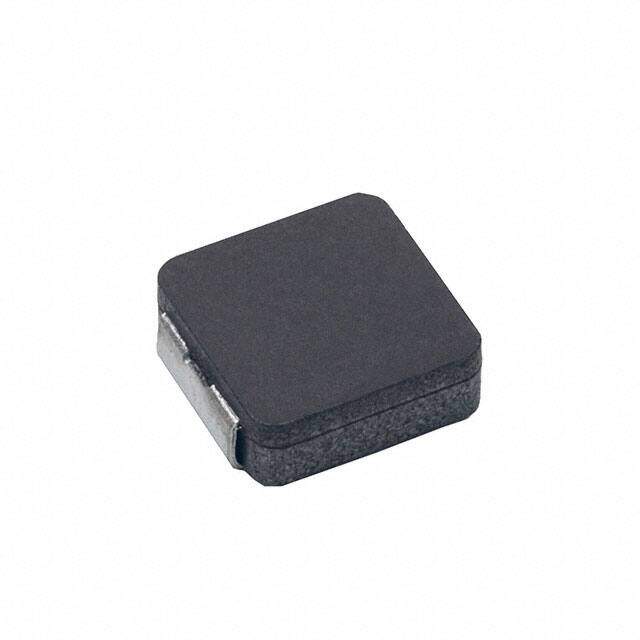

Alternative Model
