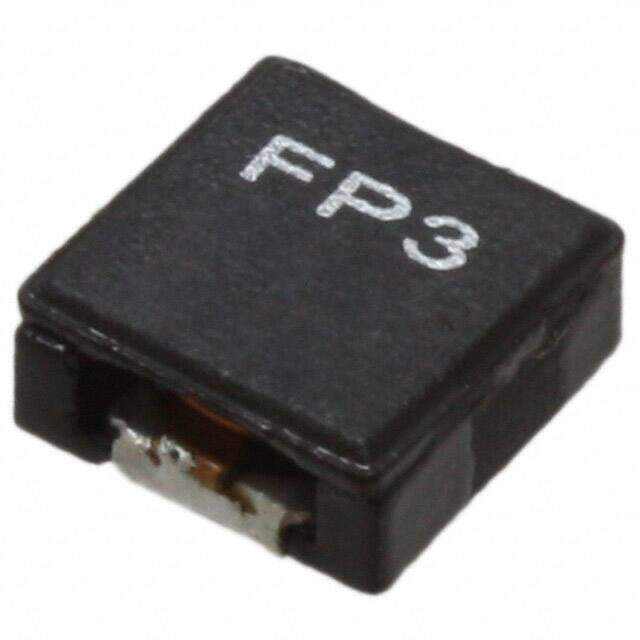

FP3-R47-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FLAT-PAC 3 Nonstandard 0.285Lx0.264W 7.25mmx6.70mm 470nH
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.596
≥1 USD $2.596
≥10 USD $2.17008
≥100 USD $1.981408
≥500 USD $1.698224
≥1000 USD $1.661
Inventory: 1098
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 6.6802mm
Length 7.239mm
Height Seated (Max) 0.118 3.00mm
Height 3mm
Technical
Self Resonant Frequency 2MHz
Series Resistance 3.7mOhm
DC Current 10.9A
Current - Saturation 14.9A
Inductance Frequency - Test 100kHz
Max DC Current 14.9A
DC Resistance (DCR) 3.67mOhm Max
Test Frequency 100kHz
Inductance 470nH
Military Standard Not
Current Rating 10.9A
Depth 6.7mm
Shielding Unshielded
Current Rating (Amps) 10.9A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.285Lx0.264W 7.25mmx6.70mm
Series FLAT-PAC 3
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~155°C
Physical
Material - Core Iron Powder
Weight 907.18474mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
