FP3-1R5-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FLAT-PAC 3 Nonstandard 0.285Lx0.264W 7.25mmx6.70mm 1.5muH
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.252934
≥1 USD $2.252934
Inventory: 1132
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 907.18474mg
Material - Core Iron Powder
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Published 2015
Series FLAT-PAC 3
Size / Dimension 0.285Lx0.264W 7.25mmx6.70mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 155°C
Min Operating Temperature -55°C
Composition Wirewound
Current Rating (Amps) 5.78A
Shielding Unshielded
Depth 6.7mm
Current Rating 5.78A
Military Standard Not
Inductance 1.5μH
Test Frequency 100kHz
DC Resistance (DCR) 13.1mOhm Max
Max DC Current 8A
Inductance Frequency - Test 100kHz
Current - Saturation 8A
Inductance Tolerance 15%
RMS Current (Irms) 5.78A

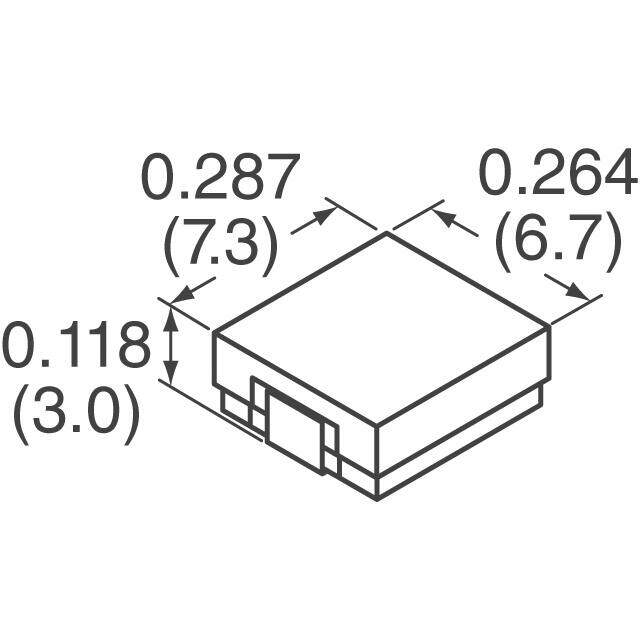

Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Length 7.239mm
Width 6.6802mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
