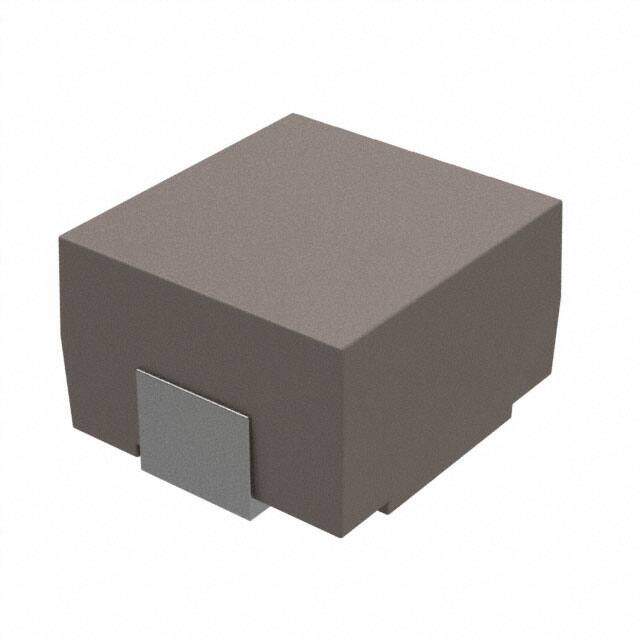

FP1308R3-R44-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FLAT-PAC FP1308R Nonstandard 0.528Lx0.500W 13.40mmx12.70mm 440nH
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.83776
≥100 USD $0.771936
≥500 USD $0.689744
≥1000 USD $0.578336
Inventory: 6436
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 12.7mm
Length 12.7mm
Height Seated (Max) 0.315 8.00mm
Height 8mm
Technical
Current - Saturation 37A
Inductance Frequency - Test 100kHz
Max DC Current 28A
DC Resistance (DCR) 0.18mOhm
Test Frequency 100kHz
Inductance 440nH
Current Rating 68A
Depth 12.7mm
Shielding Unshielded
Current Rating (Amps) 68A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.528Lx0.500W 13.40mmx12.70mm
Series FLAT-PAC, FP1308R
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 453.59237mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
