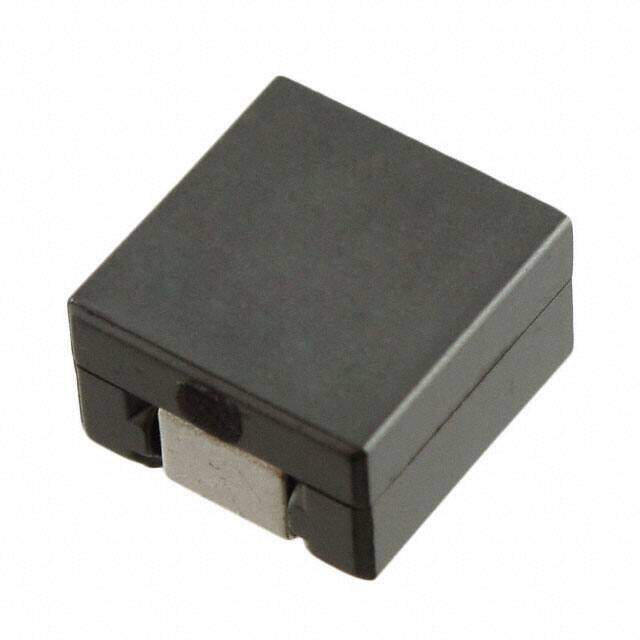

FP1308-R32-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 320NH 68A 0.24 MOHM
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.8216
≥1 USD $1.8216
≥10 USD $1.54704
≥100 USD $1.425952
≥500 USD $1.27424
≥1000 USD $1.061896
Inventory: 809
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series FLAT-PAC, FP1308
Size / Dimension 0.539Lx0.510W 13.70mmx12.95mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 68A
Shielding Unshielded
Inductance 320nH
DC Resistance (DCR) 0.24mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 45A
Dimensions
Height Seated (Max) 0.315 8.00mm
Compliance
RoHS Status RoHS Compliant
