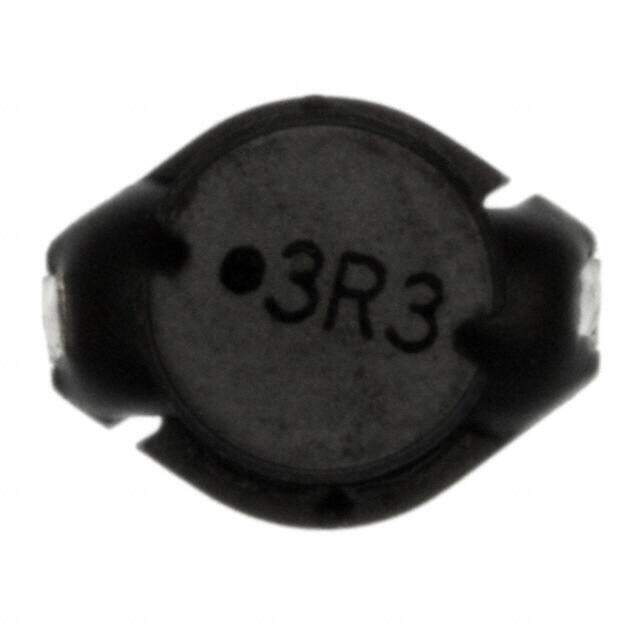

DRA74-3R3-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DRA Nonstandard 0.299Lx0.299W 7.60mmx7.60mm 3.3muH
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.4432
≥1 USD $1.4432
≥10 USD $1.2188
≥100 USD $1.107744
≥500 USD $1.041392
≥1000 USD $0.864072
≥3000 USD $0.797597
Inventory: 1225
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 7.6mm
Length 7.6mm
Height Seated (Max) 0.171 4.35mm
Height 4.35mm
Technical
Self Resonant Frequency 100kHz
RMS Current (Irms) 4.16A
Inductance Tolerance 20%
Current - Saturation 5.41A
Inductance Frequency - Test 100kHz
Max DC Current 4.16A
Current 2.91A
DC Resistance (DCR) 16mOhm
Test Frequency 100kHz
Inductance 3.3μH
Military Standard Not
Current Rating 4.16A
Depth 7.6mm
Shielding Shielded
Current Rating (Amps) 4.16A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 165°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.299Lx0.299W 7.60mmx7.60mm
Series DRA
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~165°C
Physical
Core Material Ferrite
Weight 453.59237mg
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
