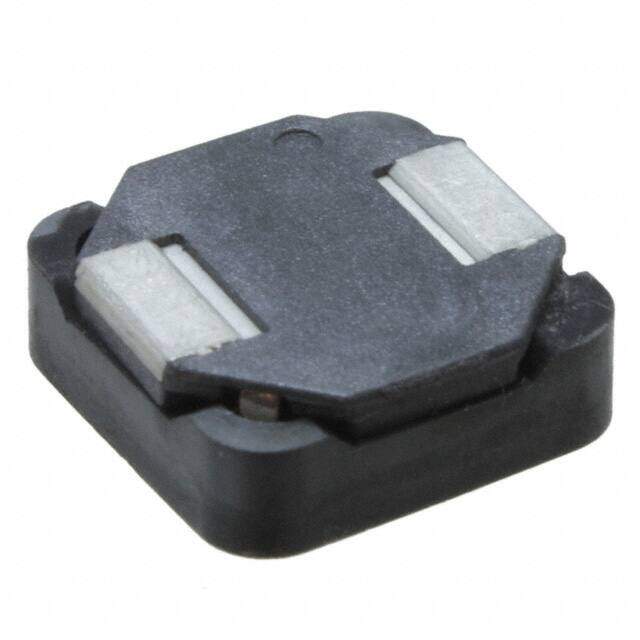

DRA124-470-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DRA Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 47muH
PDF
/
Buying Options
Total Price: USD $2.49
Unit Price: USD $2.4904
≥1 USD $2.4904
≥10 USD $2.11904
≥100 USD $1.952544
≥500 USD $1.744864
≥1000 USD $1.454112
≥3000 USD $1.412541
Inventory: 563
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Weight 453.59237mg
Core Material Ferrite
Technical
Operating Temperature -40°C~165°C
Packaging Tape & Reel (TR)
Published 2007
Series DRA
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 165°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.78A
Shielding Shielded
Depth 12.5mm
Current Rating 1.78A
Military Standard Not
Inductance 47μH
Test Frequency 100kHz
DC Resistance (DCR) 134mOhm
Current 1.285A
Max DC Current 1.78A
Inductance Frequency - Test 100kHz
Current - Saturation 2.91A
Inductance Tolerance 20%
DC Current 1.78A
RMS Current (Irms) 1.78A
Self Resonant Frequency 100kHz
Dimensions
Height 4.5mm
Height Seated (Max) 0.177 4.50mm
Length 12.5mm
Width 12.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
