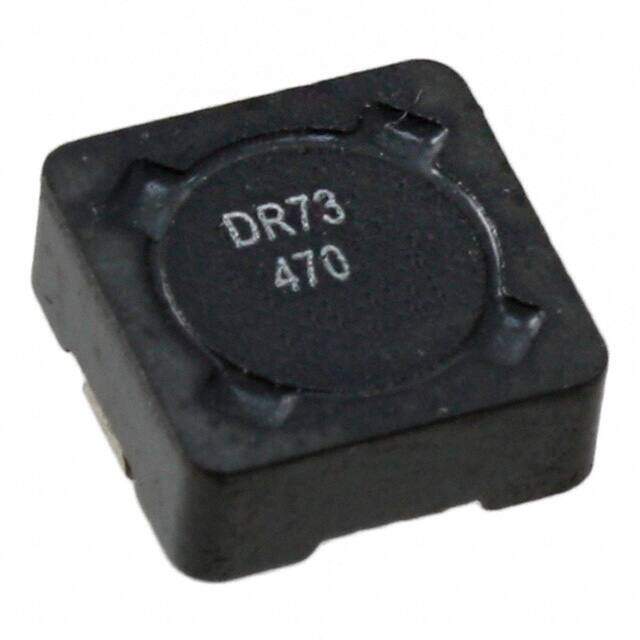

DR73-470-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DR Nonstandard 0.299Lx0.299W 7.60mmx7.60mm 47muH
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.6248
≥100 USD $0.573056
≥500 USD $0.52096
≥1000 USD $0.463584
≥3000 USD $0.437571
Inventory: 1084
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 1.360777g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2005
Series DR
Size / Dimension 0.299Lx0.299W 7.60mmx7.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.08A
Shielding Shielded
Depth 7.6mm
Current Rating 1.08A
Military Standard Not
Inductance 47μH
Test Frequency 100kHz
DC Resistance (DCR) 241mOhm
Max DC Current 1.08A
Inductance Frequency - Test 100kHz
Current - Saturation 1.14A
Inductance Tolerance 20%
DC Current 1.08A
Self Resonant Frequency 100kHz
Dimensions
Height 3.55mm
Height Seated (Max) 0.140 3.55mm
Length 7.6mm
Width 6mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
