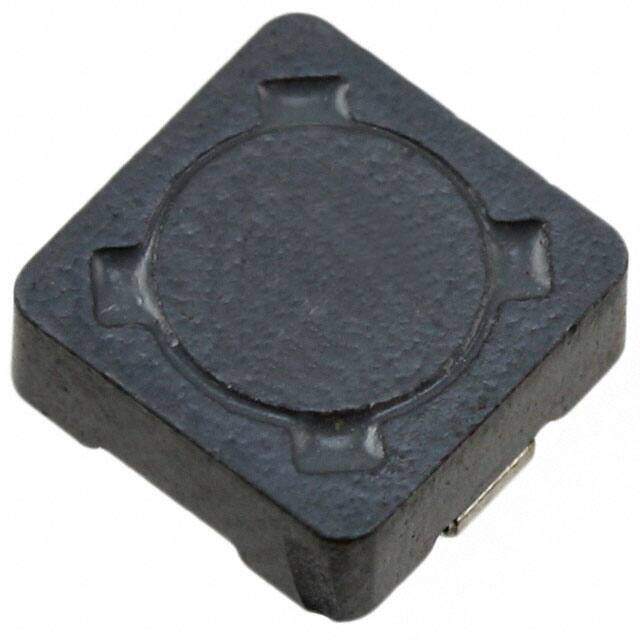

DR73-102-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DR Nonstandard 0.299Lx0.299W 7.60mmx7.60mm 1mH
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.7128
≥1 USD $0.7128
≥10 USD $0.61248
≥100 USD $0.56144
≥500 USD $0.5104
≥1000 USD $0.454256
≥3000 USD $0.428736
Inventory: 1128
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 907.18474mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series DR
Size / Dimension 0.299Lx0.299W 7.60mmx7.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 260mA
Shielding Shielded
Depth 7.6mm
Current Rating 260mA
Military Standard Not
Inductance 1mH
Test Frequency 100kHz
DC Resistance (DCR) 4.34Ohm
Max DC Current 250mA
Inductance Frequency - Test 100kHz
Current - Saturation 250mA
Inductance Tolerance 20%
DC Current 260mA
RMS Current (Irms) 260mA
Self Resonant Frequency 100kHz
Dimensions
Height 3.55mm
Height Seated (Max) 0.140 3.55mm
Length 7.6mm
Width 7.5946mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
