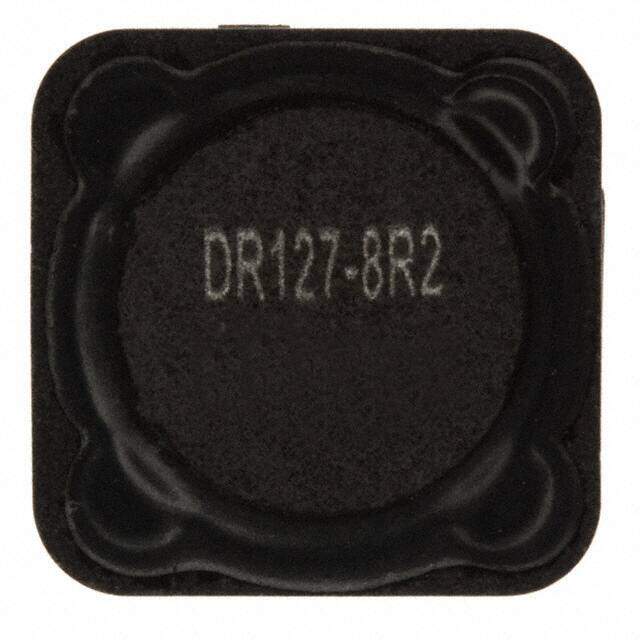

DR127-8R2-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DR Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 8.2muH
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9944
≥1 USD $0.9944
≥10 USD $0.8404
≥100 USD $0.76384
≥500 USD $0.71808
≥1000 USD $0.59576
Inventory: 1077
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 12.4968mm
Length 12.5mm
Height Seated (Max) 0.315 8.00mm
Height 8mm
Technical
Self Resonant Frequency 100kHz
Series Resistance 15.7mOhm
RMS Current (Irms) 6.32A
Inductance Tolerance 20%
Current - Saturation 12.2A
Inductance Frequency - Test 100kHz
Max DC Current 12.2A
DC Resistance (DCR) 15.7mOhm
Test Frequency 100kHz
Inductance 8.2μH
Military Standard Not
Current Rating 6.32A
Depth 12.5mm
Shielding Shielded
Current Rating (Amps) 6.32A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Series DR
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 5.896701g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
