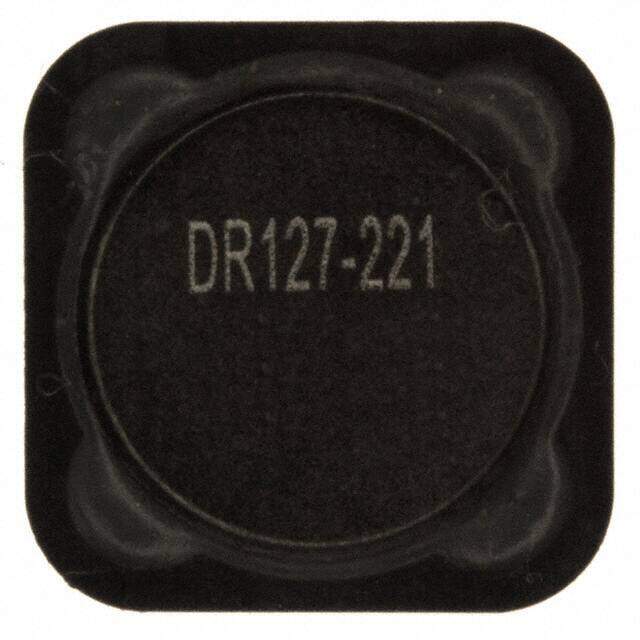

DR127-221-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DR Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 220muH
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.882101
≥1 USD $0.882101
≥10 USD $0.800468
Inventory: 1145
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 5.896701g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series DR
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 376mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.29A
Shielding Shielded
Depth 12.5mm
Current Rating 1.29A
Military Standard Not
Inductance 220μH
Test Frequency 100kHz
DC Resistance (DCR) 376mOhm
Max DC Current 2.43A
Inductance Frequency - Test 100kHz
Current - Saturation 2.43A
Inductance Tolerance 20%
DC Current 1.29A
RMS Current (Irms) 1.29A
Self Resonant Frequency 100kHz
Dimensions
Height 8mm
Height Seated (Max) 0.315 8.00mm
Length 12.5mm
Width 12.4968mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
