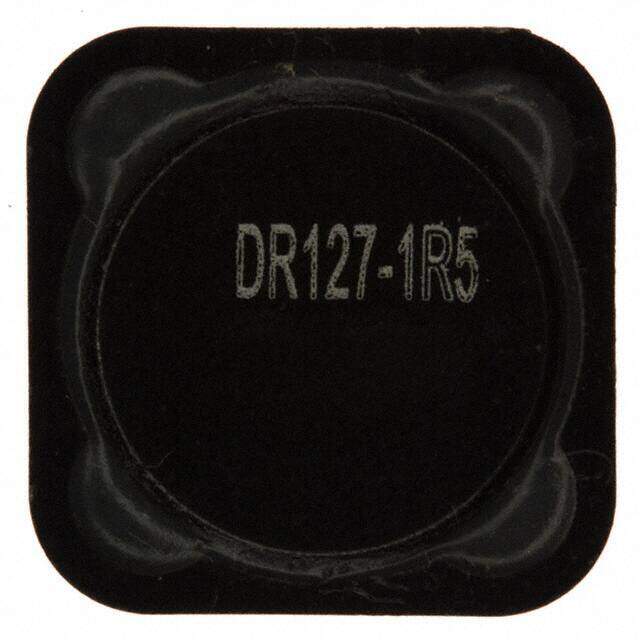

DR127-1R5-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DR Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 1.5muH
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $0.96536
≥100 USD $0.877536
≥500 USD $0.824736
≥1000 USD $0.684376
Inventory: 1105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 5.896701g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series DR
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 13.5A
Shielding Shielded
Depth 12.5mm
Current Rating 13.5A
Military Standard Not
Inductance 1.5μH
Test Frequency 100kHz
DC Resistance (DCR) 3.41mOhm
Max DC Current 31.1A
Inductance Frequency - Test 100kHz
Current - Saturation 31.1A
Inductance Tolerance 20%
DC Current 13.5A
RMS Current (Irms) 13.5A
Self Resonant Frequency 100kHz
Dimensions
Height 8mm
Height Seated (Max) 0.315 8.00mm
Length 12.5mm
Width 12.4968mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
