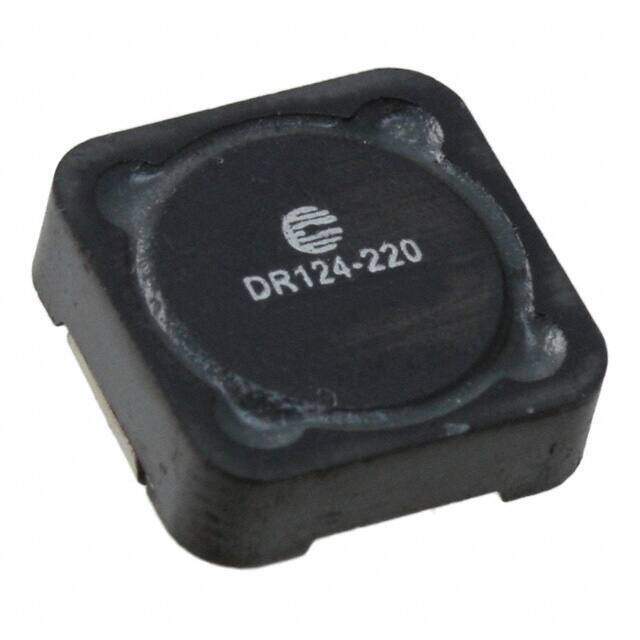

DR124-220-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DR124 Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 22muH
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.0296
≥1 USD $1.0296
≥10 USD $0.86944
≥100 USD $0.79024
≥500 USD $0.742896
≥1000 USD $0.61644
≥3000 USD $0.569043
Inventory: 902
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 3.175147g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series DR124
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3.2A
Shielding Shielded
Depth 12.3mm
Current Rating 3.2A
Military Standard Not
Inductance 22μH
Test Frequency 100kHz
DC Resistance (DCR) 64.8mOhm Max
Max DC Current 3.83A
Inductance Frequency - Test 100kHz
Current - Saturation 3.83A
Inductance Tolerance 20%
DC Current 3.2A
RMS Current (Irms) 3.2A
Self Resonant Frequency 1MHz
Dimensions
Height 4.5mm
Height Seated (Max) 0.177 4.50mm
Length 12.3mm
Width 12.4968mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
