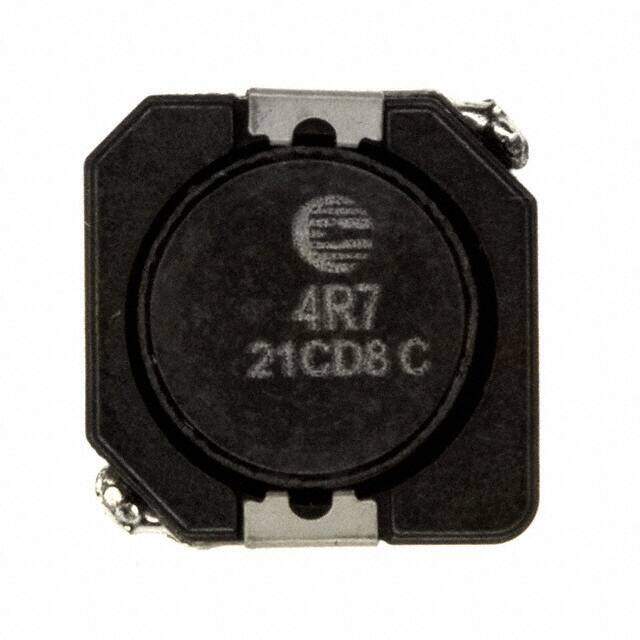

DR1050-4R7-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DR1050 Nonstandard 0.413Lx0.406W 10.50mmx10.30mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.71984
≥100 USD $0.65472
≥500 USD $0.615472
≥1000 USD $0.510752
≥3000 USD $0.471434
Inventory: 1121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 5.000005g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series DR1050
Size / Dimension 0.413Lx0.406W 10.50mmx10.30mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 6.13A
Shielding Shielded
Depth 10.3mm
Current Rating 6.13A
Military Standard Not
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 11.9mOhm Max
Max DC Current 6.7A
Inductance Frequency - Test 100kHz
Current - Saturation 6.7A
Inductance Tolerance 30%
RMS Current (Irms) 6.13A
Self Resonant Frequency 1MHz
Dimensions
Height 5mm
Height Seated (Max) 0.197 5.00mm
Length 10.4902mm
Width 10.287mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
