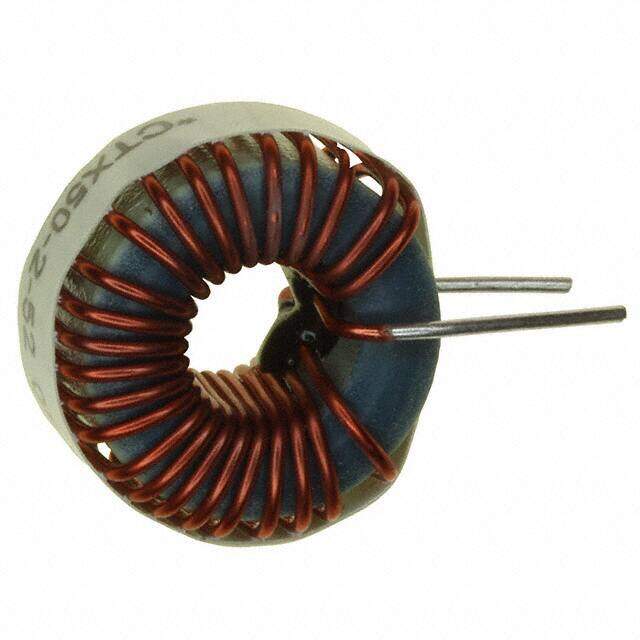

CTX50-2-52-R
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CTX Radial Vertical (Open) 0.850Diax0.535W 21.60mmx13.60mm 50muH
PDF
/
Buying Options
Total Price: USD $4.94
Unit Price: USD $4.9368
≥1 USD $4.9368
≥10 USD $4.00136
≥100 USD $3.556608
≥500 USD $3.112199
≥1000 USD $3.062743
≥3000 USD $2.963963
Inventory: 396
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Number of Pins 2
Weight 16.329325g
Material - Core Iron Powder
Technical
Operating Temperature -40°C~75°C
Packaging Bulk
Published 2007
Series CTX
Size / Dimension 0.850Diax0.535W 21.60mmx13.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Toroidal
Max Operating Temperature 75°C
Min Operating Temperature -40°C
Current Rating (Amps) 4.9A
Shielding Unshielded
Depth 13.6mm
Current Rating 4.9A
Military Standard Not
Lead Pitch 11mm
Inductance 50μH
Test Frequency 100kHz
DC Resistance (DCR) 32.6mOhm Max
Max DC Current 4.9A
Lead/Base Style Radial
Inductance Frequency - Test 100kHz
Current - Saturation 4.9A
Inductance Tolerance 20%
DC Current 4.9A
RMS Current (Irms) 4.9A
Inductance - Parallel 50 μH
Dimensions
Diameter 21.6mm
Height 13.6mm
Length 13.6mm
Width 13.589mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
