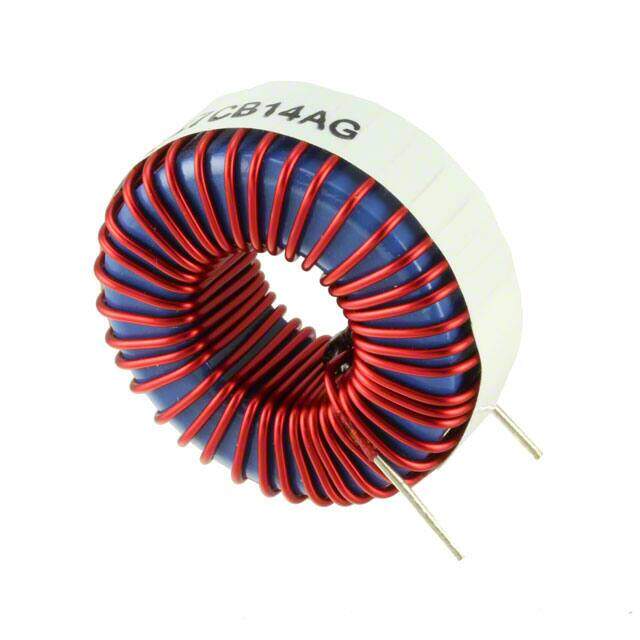

CTX250-5-52-R
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CTX Radial Vertical (Open) 2.114Diax0.957W 53.70mmx24.30mm 250muH
PDF
/
Buying Options
Total Price: USD $16.02
Unit Price: USD $16.0248
≥1 USD $16.0248
≥10 USD $15.22253
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Weight 191.41598g
Material - Core Iron Powder
Technical
Operating Temperature -40°C~75°C
Packaging Bulk
Published 2007
Series CTX
Size / Dimension 2.114Diax0.957W 53.70mmx24.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Toroidal
Max Operating Temperature 75°C
Min Operating Temperature -40°C
Current Rating (Amps) 9.2A
Shielding Unshielded
Depth 24.3mm
Current Rating 9.2A
Military Standard Not
Lead Pitch 49.4mm
Inductance 250μH
Test Frequency 100kHz
DC Resistance (DCR) 40mOhm Max
Max DC Current 9.2A
Lead/Base Style Radial
Inductance Frequency - Test 100kHz
Current - Saturation 8.1A
DC Current 9.2A
Inductance - Parallel 250 μH
Dimensions
Diameter 53.7mm
Height 24.3mm
Width 24.3078mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
