CTX06-14622
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

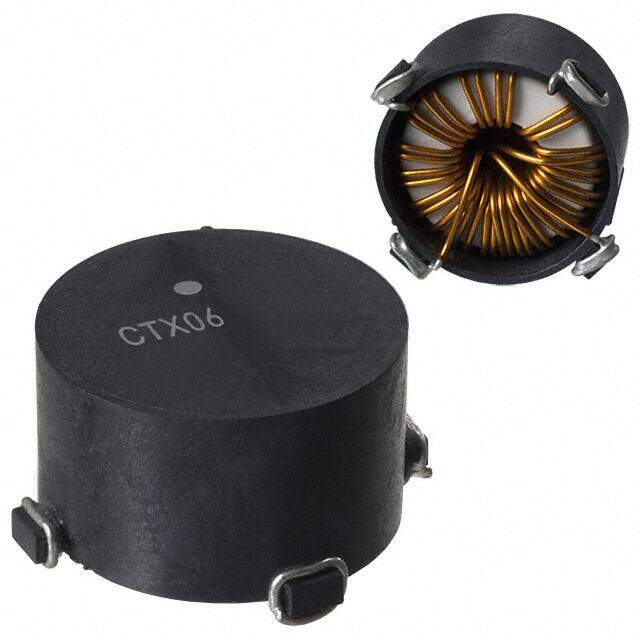

CTX Nonstandard 0.984Lx0.984W 25.00mmx25.00mm 22muH
PDF
/
Inventory: 2092
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 9.52544g
Material - Core Iron Powder
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~75°C
Packaging Bulk
Published 2004
Series CTX
Size / Dimension 0.984Lx0.984W 25.00mmx25.00mm
Tolerance ±0.25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination SMD/SMT
ECCN Code EAR99
Type Toroidal
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 8.5A
Inductance 22μH
Test Frequency 100kHz
DC Resistance (DCR) 11.7mOhm Max
Max DC Current 8.5A
Terminal Placement QUAD IN-LINE
Dimensions
Diameter 20.3mm
Height 12.2936mm
Height Seated (Max) 0.484 12.30mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
