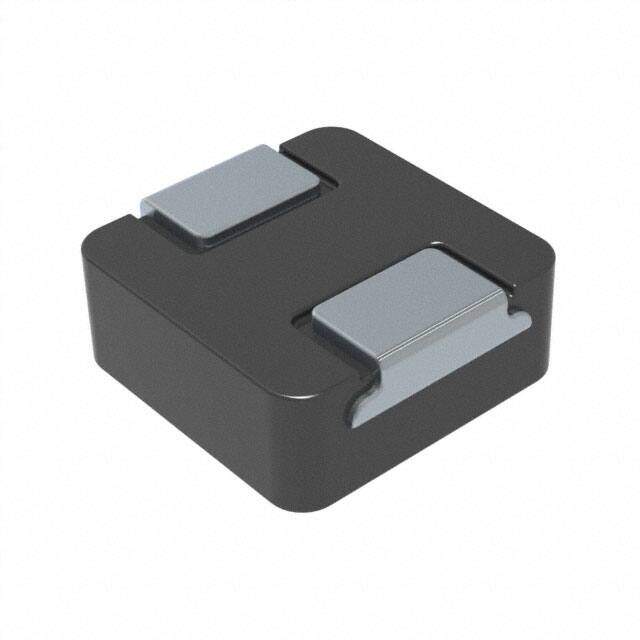

VCMT136E-100MN5 image
Favorite
VCMT136E-100MN5 image
Favorite

VCMT136E-100MN5

Delta Electronics/Cyntec
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Active Tape & Reel (TR) Metal fixed air core inductor -55C~155C 100kHz 17.2mOhm Max 10muH
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.936
≥1 USD $1.936
≥10 USD $1.64296
≥100 USD $1.514304
≥500 USD $1.353264
≥1000 USD $1.127632
≥3000 USD $1.095459
Inventory: 585
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal

Technical

Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series VCMT136E
Size / Dimension 0.530Lx0.496W 13.45mmx12.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 11A
Shielding Unshielded
Inductance 10μH
DC Resistance (DCR) 17.2mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 9.2A

Dimensions

Height Seated (Max) 0.256 6.50mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
