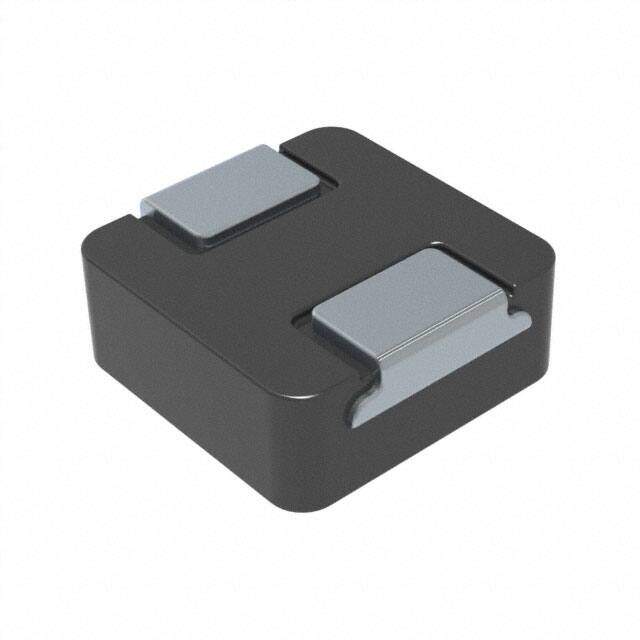

VCHA105D-150MS6
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active Tape & Reel (TR) Metal fixed air core inductor -55C~165C 100kHz 31.3mOhm Max 15muH
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.8128
≥1 USD $1.8128
≥10 USD $1.54088
≥100 USD $1.42032
≥500 USD $1.269136
≥1000 USD $1.057672
≥3000 USD $1.027453
Inventory: 976
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.213 5.40mm
Technical
Current - Saturation 7.9A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 31.3mOhm Max
Inductance 15μH
Shielding Unshielded
Current Rating (Amps) 7.6A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.427Lx0.394W 10.85mmx10.00mm
Series VCHA105D
Packaging Tape & Reel (TR)
Operating Temperature -55°C~165°C
Physical
Material - Core Metal
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
