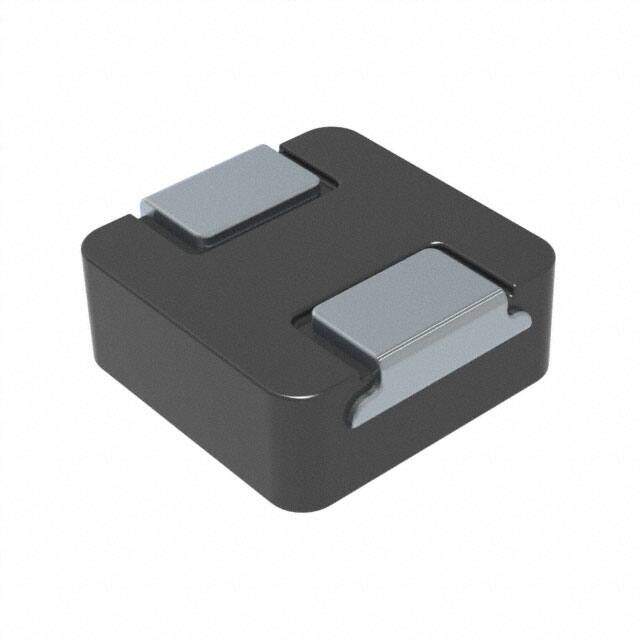

VCHA075D-470MS6
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active Tape & Reel (TR) Metal Fixed Inductor -55C~165C 100kHz 171.6mOhm Max 47muH
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.584
≥1 USD $1.584
≥10 USD $1.34816
≥100 USD $1.242912
≥500 USD $1.11056
≥1000 USD $0.925496
≥3000 USD $0.899008
Inventory: 664
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal
Technical
Operating Temperature -55°C~165°C
Packaging Tape & Reel (TR)
Series VCHA075D
Size / Dimension 0.303Lx0.283W 7.70mmx7.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 2.4A
Shielding Unshielded
Inductance 47μH
DC Resistance (DCR) 171.6mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 3.5A
Dimensions
Height Seated (Max) 0.213 5.40mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
