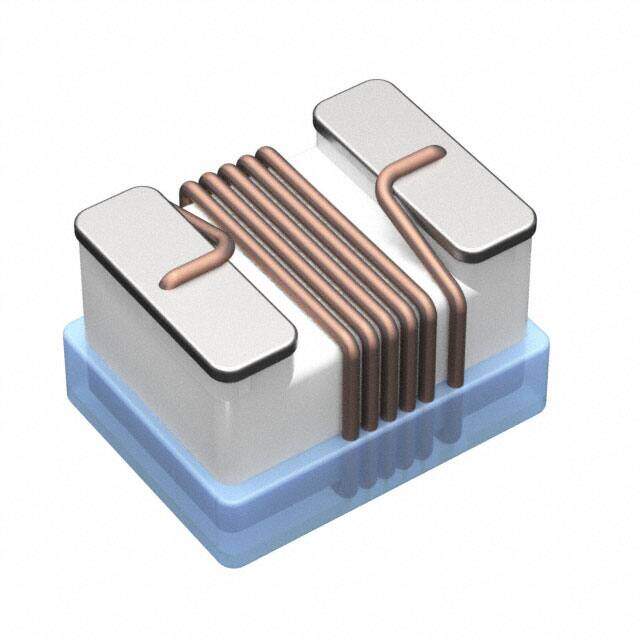

0805CT-100EKTS
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 10NH 800MA 80 MOHM SMD
PDF
/
Buying Options
Total Price: USD $0.19
Unit Price: USD $0.1936
≥1 USD $0.1936
≥10 USD $0.15664
≥100 USD $0.143616
≥500 USD $0.12672
≥1000 USD $0.110792
≥3000 USD $0.10553
Inventory: 2817
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.041 1.03mm
Technical
Inductance Frequency - Test 250MHz
Q @ Freq 55 @ 750MHz
Frequency - Self Resonant 3.3GHz
DC Resistance (DCR) 80mOhm
Inductance 10nH
Shielding Unshielded
Current Rating (Amps) 800mA
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.090Lx0.068W 2.29mmx1.73mm
Series 0805CT
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ceramic
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
