0805CS-391EJTS
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
0805CS 0805 (2012Metric) 0.090Lx0.071W 2.29mmx1.80mm 390nH
PDF
/
Buying Options
Total Price: USD $0.14
Unit Price: USD $0.1408
≥1 USD $0.1408
≥10 USD $0.11352
≥100 USD $0.104896
≥500 USD $0.096272
≥1000 USD $0.084832
≥3000 USD $0.082227
Inventory: 1139
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ceramic
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2017
Series 0805CS
Size / Dimension 0.090Lx0.071W 2.29mmx1.80mm
Tolerance ±5%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 290mA
Packing Method TR, 7 Inch
Shielding Unshielded
Number of Functions 1
Construction Chip
Inductance 390nH
Test Frequency 100MHz
DC Resistance (DCR) 1.5Ohm
Frequency - Self Resonant 560MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 48 @ 250MHz
Quality Factor-Min (at L-nom) 48
Inductance Frequency - Test 100MHz
Case/Size Code 0806
Rated Current-Max 0.29A
Special Feature Q MEASURED AT 250MHZ
Dimensions
Height Seated (Max) 0.061 1.55mm
Compliance
RoHS Status ROHS3 Compliant

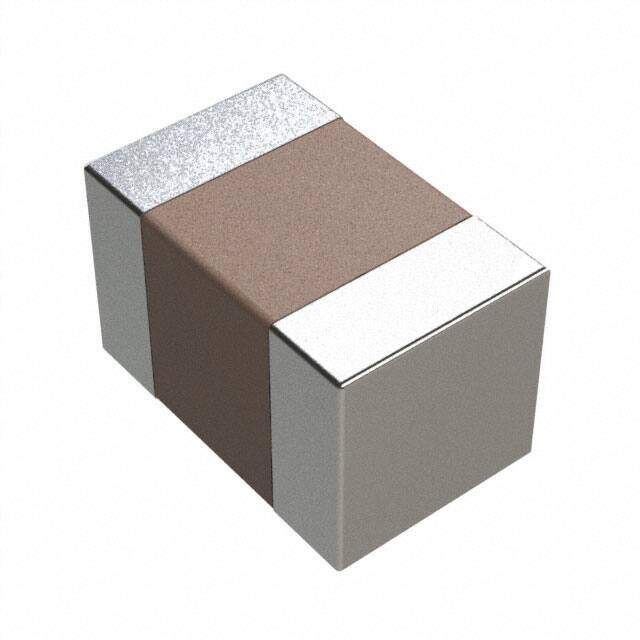

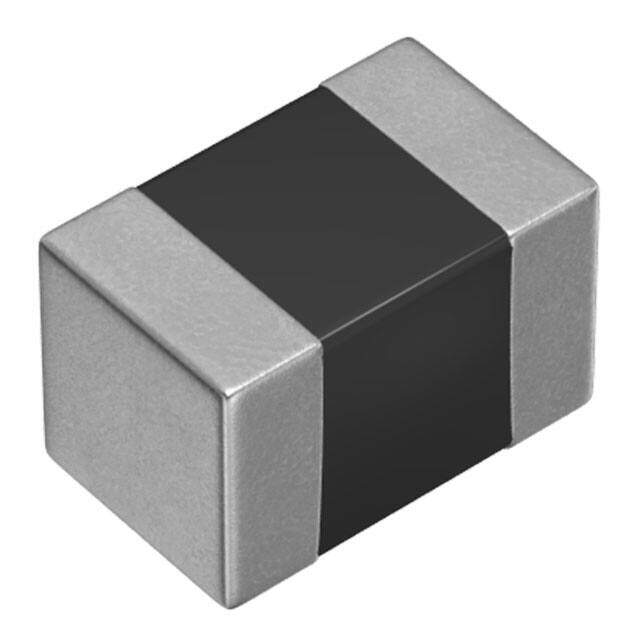

Alternative Model
