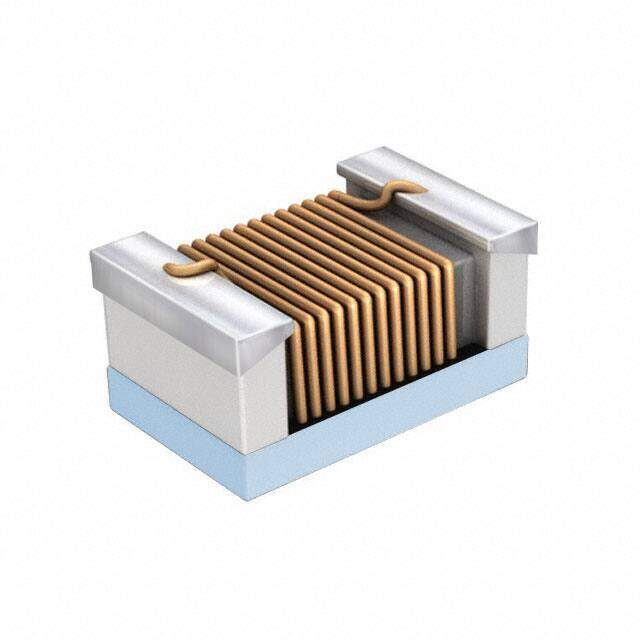

0402HC-5N6EDTS
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CHIP INDUCTOR 5.6NH0.5 800MA 0.0
PDF
/
Buying Options
Total Price: USD $0.2
Unit Price: USD $0.2024
≥1 USD $0.2024
≥10 USD $0.16192
≥100 USD $0.149248
≥500 USD $0.136928
≥1000 USD $0.120736
≥3000 USD $0.11697
Inventory: 7865
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.024 0.60mm
Technical
Inductance Frequency - Test 100MHz
Q @ Freq 30 @ 250MHz
Frequency - Self Resonant 8GHz
DC Resistance (DCR) 51mOhm
Inductance 5.6nH
Shielding Unshielded
Current Rating (Amps) 800mA
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.5nH
Size / Dimension 0.043Lx0.024W 1.10mmx0.60mm
Series 0402HC
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ceramic
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
