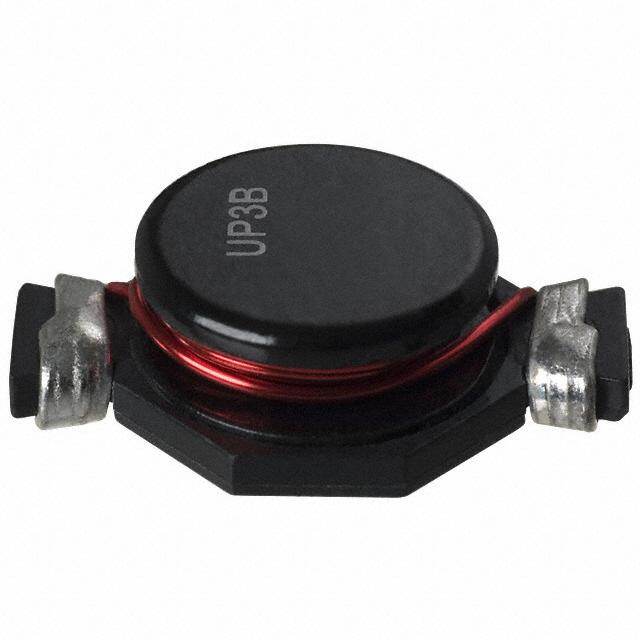

UP3B-150
RoHS
/
Package SMD/SMT
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead WRAPAROUND (Type) Inductor 85C 100kHz 31.7mOhm 15muH
PDF
/
Inventory: 5838
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 13.208mm
Length 19.2786mm
Height 6.7818mm
Technical
Inductance-Nom (L) 15 μH
DC Resistance (DCR) - Parallel 31.7mOhm
Current - Saturation 4.3A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Test Frequency 100kHz
Inductance 15 μH
Current Rating 3.9A
Reach Compliance Code unknown
Number of Functions 1
Shielding Unshielded
HTS Code 8504.50.80.00
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Tolerance 20%
Published 2002
Packaging Tape & Reel (TR)
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case SMD/SMT
Mount Surface Mount
