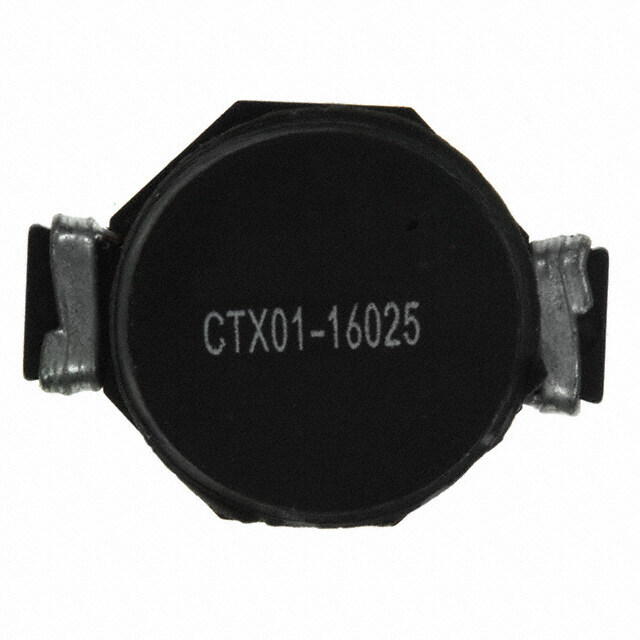

CTX01-16025 image
Favorite
CTX01-16025 image
Favorite

CTX01-16025

Cooper Industries
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free ONE SURFACE (Type) Inductor 150C 100kHz 62mOhm 120muH
PDF
/
Buying Options
Total Price: USD $1.18
Unit Price: USD $1.18465
≥1 USD $1.18465
≥10 USD $0.97185
≥100 USD $0.94145
≥500 USD $0.91105
≥1000 USD $0.88065
Inventory: 20006
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Packaging Tape & Reel (TR)
Published 2008
Tolerance 25%
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Max Operating Temperature 150°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 1
Current Rating 2A
Inductance 120 μH
Test Frequency 100kHz
Max DC Current 2A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 1.7A
DC Resistance (DCR) - Parallel 62mOhm
Inductance-Nom (L) 120 μH

Dimensions

Height 7.55mm
Height Seated (Max) 7.5438mm
Length 17.7038mm
Width 12.8524mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
