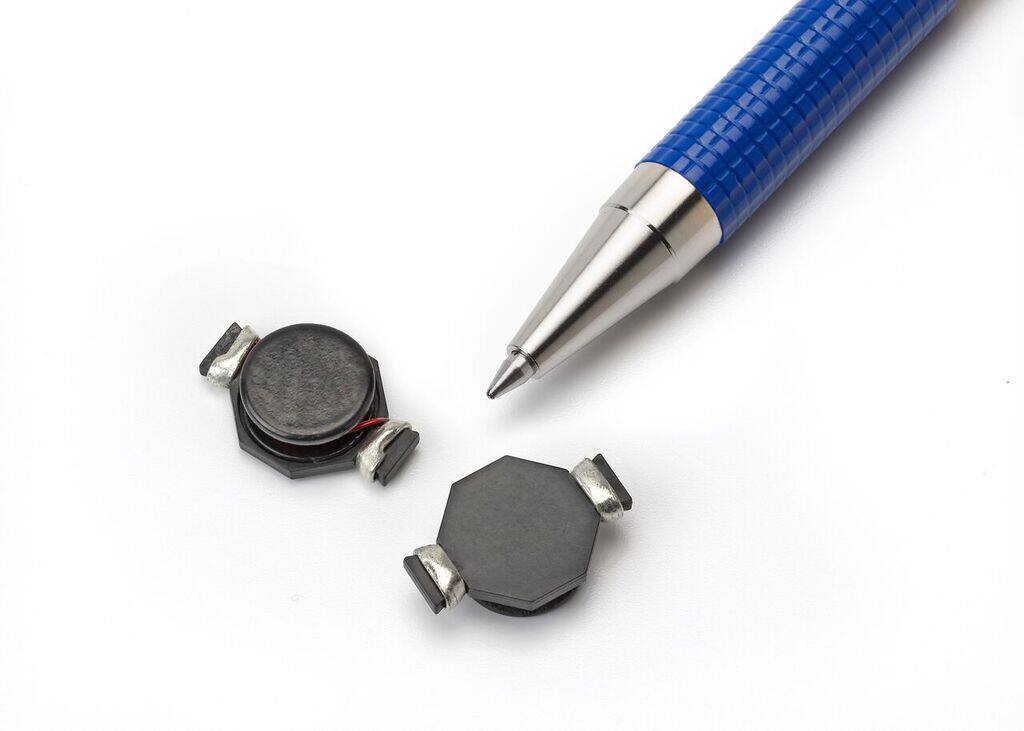

UP3B-470 image
Favorite
UP3B-470 image
Favorite

UP3B-470

Coiltronics
RoHS
/
Package SMD/SMT
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead NO LEAD (Type) Inductor 85C 100kHz 108.2mOhm 47muH
PDF
/
Inventory: 3166
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Width 13.208mm
Length 19.2786mm
Height 6.7818mm

Technical

Inductance-Nom (L) 51 μH
DC Resistance (DCR) - Parallel 108.2mOhm
Case/Size Code 7652
Current - Saturation 2.4A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application HIGH CURRENT INDUCTOR
Test Frequency 100kHz
Inductance 47 μH
Current Rating 1.9A
Reach Compliance Code unknown
Construction Miniature Size
Number of Functions 1
Shielding Unshielded
Packing Method TR
HTS Code 8504.50.80.00
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Tolerance 20%
Series UP3B
Published 2012
Packaging Tape & Reel (TR)

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Terminal Shape NO LEAD
Package / Case SMD/SMT
Mount Surface Mount
