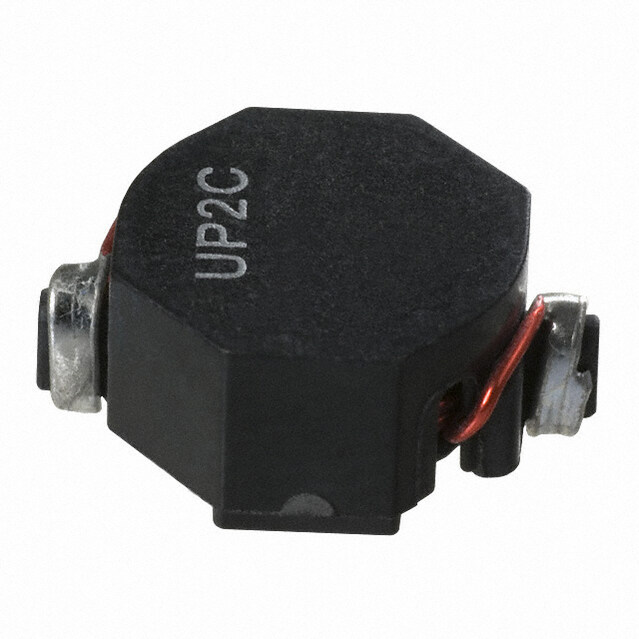

UP2C-470-R image
Favorite
UP2C-470-R image
Favorite

UP2C-470-R

Coiltronics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free TR (Type) Inductor 85C 100kHz 118.5mOhm 47muH
PDF
/
Buying Options
Total Price: USD $7.95
Unit Price: USD $7.95055
≥1 USD $7.95055
≥10 USD $6.52365
≥100 USD $6.32035
≥500 USD $6.1161
≥1000 USD $5.91185
Inventory: 9303
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 453.59237mg
Material - Core Ferrite

Technical

Tolerance 20%
Termination SMD/SMT
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Wirewound
Packing Method TR
Shielding Unshielded
Depth 9.4mm
Construction Miniature Size
Current Rating 1.77A
Military Standard Not
Inductance 47 μH
Test Frequency 100kHz
Max DC Current 1.83A
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 1.83A
Case/Size Code 5137
DC Resistance (DCR) - Parallel 118.5mOhm
Inductance-Nom (L) 47 μH
DC Current 1.77A

Dimensions

Height 5.2mm
Height Seated (Max) 5.1816mm
Length 12.8778mm
Width 9.398mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
