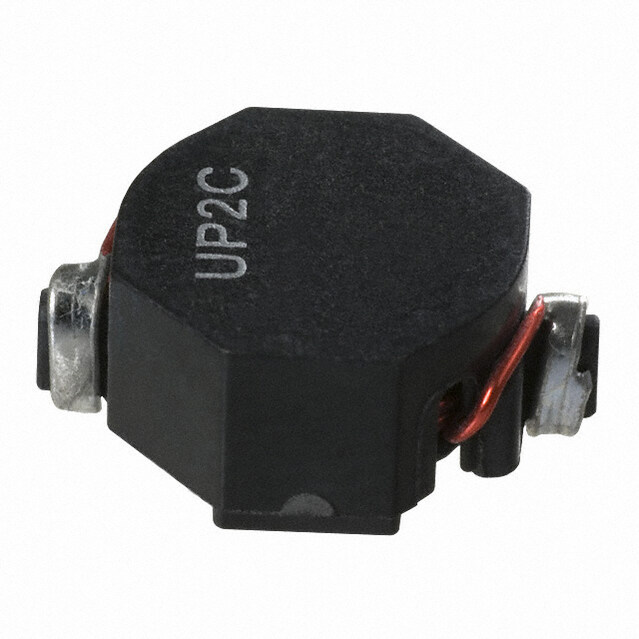

UP2C-100-R image
Favorite
UP2C-100-R image
Favorite

UP2C-100-R

Coiltronics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free 2016 (Type) Inductor 85C 100kHz 28.3mOhm 10muH
PDF
/
Inventory: 9839
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 1.814369g
Material - Core Ferrite

Technical

Packaging Tape & Reel (TR)
Published 2016
Tolerance 20%
Termination SMD/SMT
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Wirewound
Packing Method TR
Shielding Unshielded
Depth 9.4mm
Construction Miniature Size
Current Rating 3.61A
Military Standard Not
Inductance 10 μH
Test Frequency 100kHz
Max DC Current 3.94A
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 3.94A
Case/Size Code 5137
DC Resistance (DCR) - Parallel 28.3mOhm
Inductance Tolerance 20%
Inductance-Nom (L) 10 μH
DC Current 3.61A
RMS Current (Irms) 3.61A

Dimensions

Height 5.2mm
Height Seated (Max) 5.1816mm
Length 12.8778mm
Width 9.398mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
