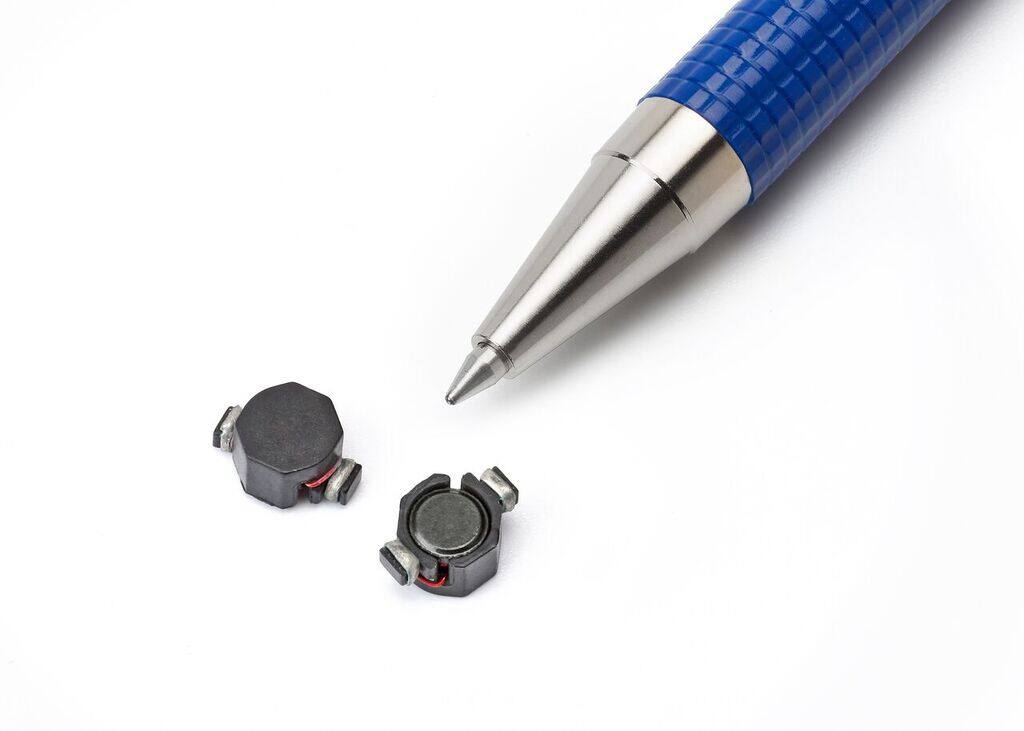

UP1B-150
RoHS
/
Package SMD/SMT
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead NO LEAD (Type) Inductor 85C 100kHz 174.7mOhm 15muH
PDF
/
Inventory: 8543
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 6.096mm
Length 8.89mm
Height 4.9784mm
Technical
Inductance-Nom (L) 16 μH
DC Resistance (DCR) - Parallel 174.7mOhm
Case/Size Code 3524
Current - Saturation 1.5A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application HIGH CURRENT INDUCTOR
Test Frequency 100kHz
Inductance 15 μH
Current Rating 1.2A
Construction Miniature Size
Number of Functions 1
Shielding Unshielded
Packing Method TR
HTS Code 8504.50.80.00
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Tolerance 20%
Series UP1B
Packaging Tape & Reel (TR)
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Terminal Shape NO LEAD
Package / Case SMD/SMT
Mount Surface Mount
