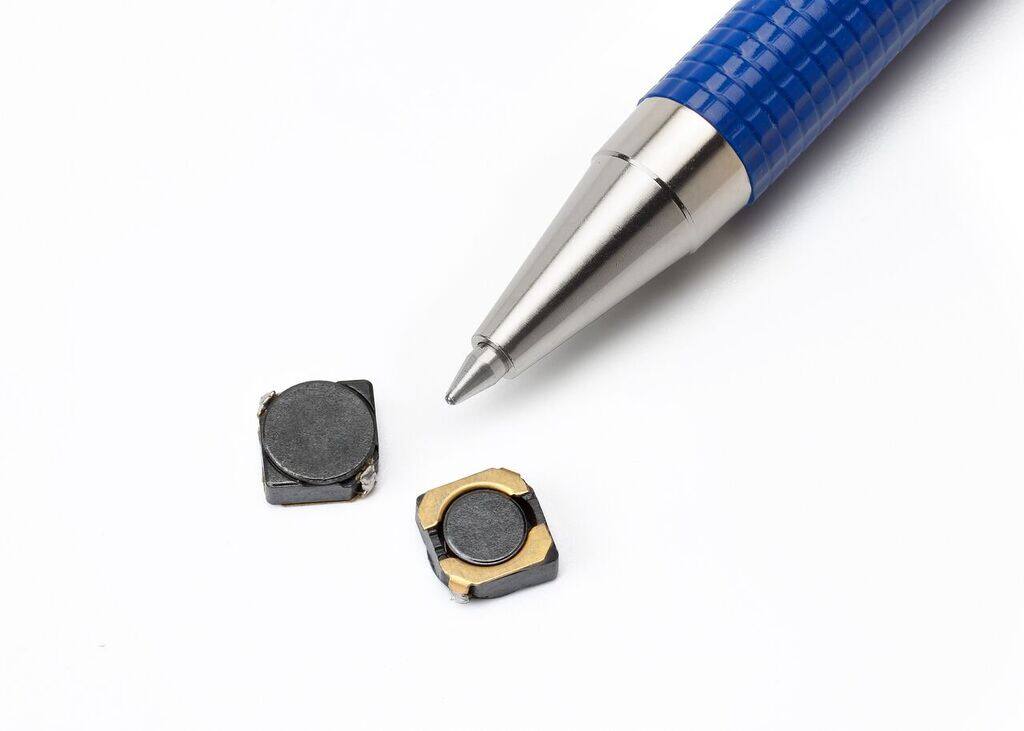

SD8328-470-R image
Favorite
SD8328-470-R image
Favorite

SD8328-470-R

Coiltronics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free 2012 (Type) Inductor 125C 100kHz 194mOhm 47muH
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.684
≥1 USD $2.684
≥10 USD $2.27832
≥100 USD $2.100032
≥500 USD $1.876688
≥1000 USD $1.563848
≥3000 USD $1.519162
Inventory: 1148
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Width 8.2804mm
Length 9.4996mm
Height Seated (Max) 2.9972mm
Height 3mm

Technical

RMS Current (Irms) 1.3A
DC Current 1.3A
Inductance Tolerance 30%
DC Resistance (DCR) - Parallel 194mOhm
Current - Saturation 1.2A
Inductor Type GENERAL PURPOSE INDUCTOR
Max DC Current 1.3A
Test Frequency 100kHz
Inductance 47 μH
Military Standard Not
Current Rating 1.3A
Depth 8.3mm
Shielding Shielded
HTS Code 8504.50.80.00
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
ECCN Code EAR99
Termination SMD/SMT
Tolerance 30%
Published 2012

Physical

Material - Core Ferrite
Weight 1.360777g
Number of Pins 2
Package / Case Nonstandard
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
