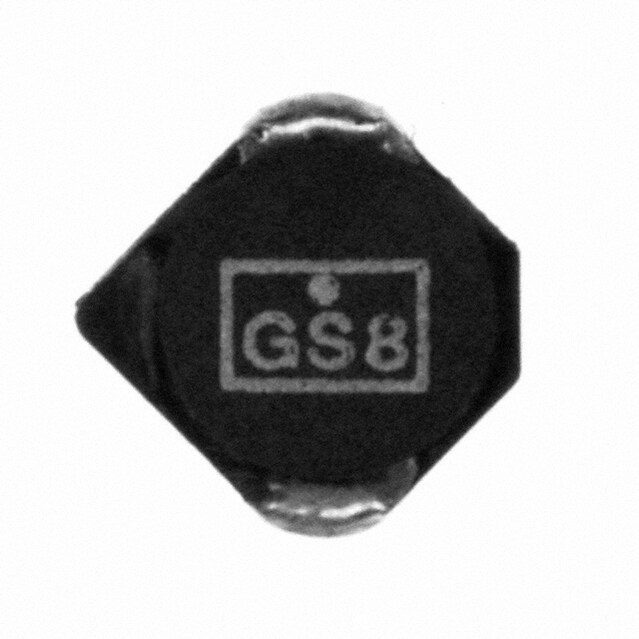

SD3814-4R7-R image
Favorite
SD3814-4R7-R image
Favorite

SD3814-4R7-R

Coiltronics
RoHS
/
Package 1515
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Contains Lead Cut Tape Ferrite (Type) Inductor 85C 100kHz 141mOhm 4.7muH
PDF
/
Inventory: 5249
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 3.7846mm
Length 3.9878mm
Height Seated (Max) 1.397mm
Height 1.4mm

Technical

DC Current 1.06A
DC Resistance (DCR) - Parallel 141mOhm
Current - Saturation 1.29A
Max DC Current 1.29A
Test Frequency 100kHz
Inductance 4.7 μH
Military Standard Not
Current Rating 1.06A
Depth 4mm
Shielding Shielded
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 141mOhm
Termination SMD/SMT
Tolerance 15%
Packaging Cut Tape

Physical

Material - Core Ferrite
Weight 453.59237mg
Number of Pins 2
Package / Case 1515
Mount Surface Mount
